Intel LGA1151 package Gen 6/7/8/9 i3/i5/i7/i9/G CPU 2 x DDR4 DIMM memory sockets up to 32GB
3D/3SATA/2GbE/9USB/6COM/4PCI/3PCIe
High Tg wide temperature PCB material to ensure wide temperature stability
Industrial-grade port protection blocks static electricity and surges, effectively protecting the core of the system
Industrial interface communication chip and Intel network chip are used to ensure high-speed and stable data transmission
Optimize the layout of interfaces and expansion slots to effectively avoid interference between business cards and facilitate the expansion needs of users in different industries
规格 下载产品文件
Product Code | IPC-4U810 | |
Product Type | 4U rack type intelligent manufacturing machine | |
processor | i3,i5,i7,Pentium,Celeron CPUs Gen 6, 7, 8, 9 in Intel LGA1151 | |
chipset | Intel ® H110 Chipset | |
Memory | 2 × 288Pin 1866/2133MHZ DDR4 DIMM memory slot, single 16GB, maximum support 32GB | |
display controller | Intel CPU integrated display controller (depending on the CPU) | |
display interface | Three display output DVI-D +VGA+HDMI, support independent dual display, resolution up to 1920×2000 | |
Storage | SATA | 4 x SATA3.0 (default supports 3 x SATA3.0 , 1 x mSATA) |
SSD | 1 x mSATA (optional M.2 SSD) | |
USB | 4 USB3.0 Type A and RJ45 shared 3-in-1 interface board edge led out; 2 USB2.0 Type A and PS/2 shared 3-in-1 interface board edge led out; 1 USB2.0 Type A vertical plug USB interface in the board is preset as USB Dongle; 2 x USB2.0 pin pre-installed in the board Customer chassis front panel expansion | |
parallel port | 1 parallel port | |
Series port | COM1 support RS232/422/485, COM2-6 support RS232 | |
Keyboard mouse interface | 1 PS/2 2-in-1 with 2 USB 3-in-1 connectors | |
Digital I/O | 8-bit digital I/O with power and ground, +5V level | |
LPC Extension Interface | Provide 1 LPC local bus interface, expandable serial port module, etc. | |
TPM interface | Support for a secure chip interface | |
Watch Dog | 255 levels of programmable sec/min with timeout interrupt or system reset | |
BIOS | AMI UEFI BIOS | |
Operating system | Win7/Win10/WES7/Linux , 32 bit/64 bit | |
expansion bus | 1 PCIe x16, 2 PCIe x1 (x4 connector, x1 signal) 4 PCI (32bit), 1 x Mini-PCIe (optional SIM card holder supports 4G module) | |
Front I/O port | 2 USB ports, power switch, reset switch, power indicator, hard disk indicator, door with lock | |
Rear I/O port
| 2 Gigabit Ethernet ports,LAN1:i219, LAN2:RTL811H(LAN2 optional i225V);Realtek ALC897 supports Mic-in, Spk-out; 4 USB 3.0 Type A; 1 PS/2 two-in-one interface; 2 USB 2.0 Type A; Three display output DVI-D +VGA+HDMI; 1 COM
| |
cooling system
| 1 x 12025 fan with removable dust screen as standard | |
Atmospheric conditions of working environment | Temperature 0℃ ~ 45℃, relative humidity 20% ~ 80%, atmospheric pressure 85~105kPa | |
Storage Ambient Atmospheric Conditions | temperature -40℃ ~ 55℃;Relative humidity 20% ~ 93%(40℃), atmospheric pressure 85~105kPa | |
anti-vibration performance | Operating state 1Grms@5~500Hz , non-operating state:2Grms@5~500Hz | |
impact resistance | 3-way, 10G ( 11ms half sine wave) , 3 times/way | |
Reference standard of complete machine | Comply with GB/T 9813.4-2017(National Standard for Industrial Application of WeChat Computer) | |
Power | AC Input 220V,50Hz(220~242V,50~51Hz) Standard 300W ATX power supply | |
size (W*H*D) | 430mm *178mm *450mm (excluding lugs and handles) | |
Weight | Chassis with power supply approx. 15KG | |

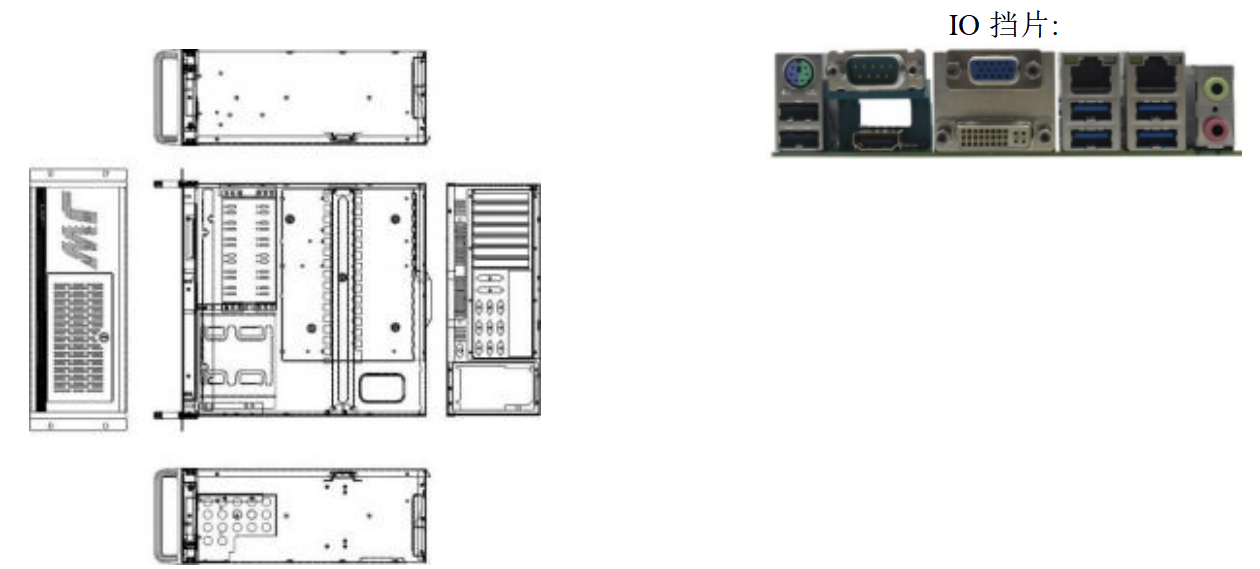

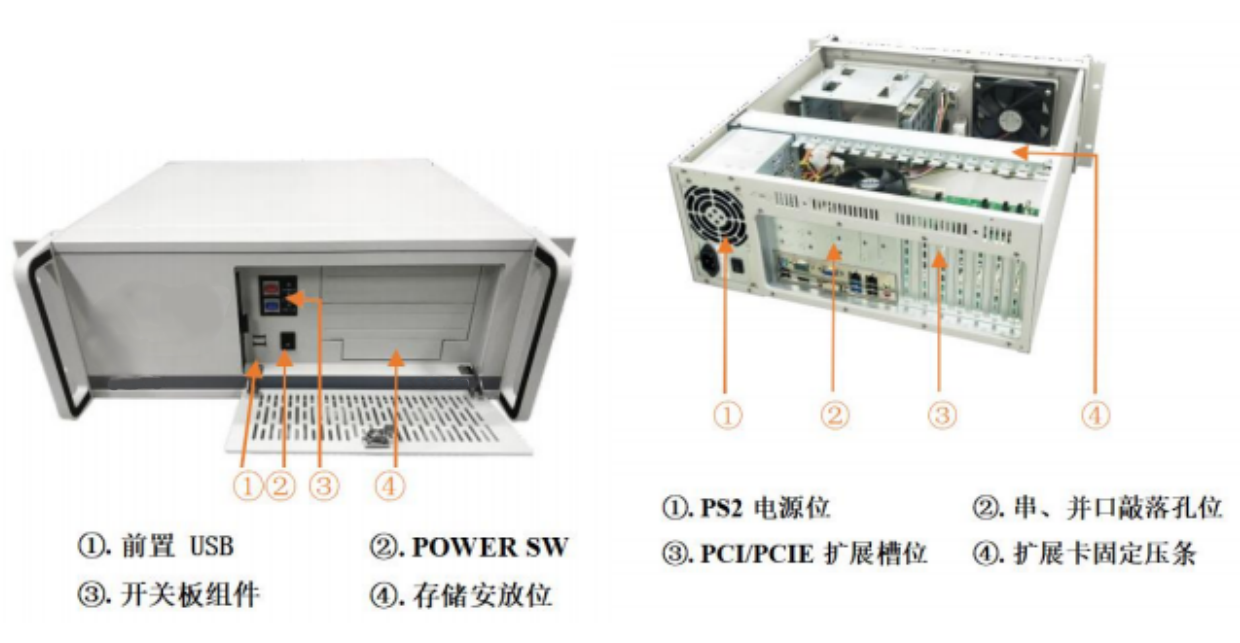

Product size and interface layout:
Ordering Information:
Product Code | Power | 2.5"bit | 3.5"bit | 5.25"bit | USB | COM | Slot | Switch |
IPC-4U810-B | 300W | 1 | 2(+6) | 2 | 9 | 6 | 7 | ATX |
Accessories List:
Accessory Description | Specification | Number |
cable tie | Cable Tie White Length 150mm LEAD-FREE | 2 |
AC Power Cord | AC = 3 P 10A 250 V 60227 IEC 53 3 * 0.75mm2 L = 1500 AC 220 V | 1 |
