J6413 Quad Core SDP 10W or N6211 Dual Core 6.5W CPU
The whole machine has no fan design and adopts aluminum alloy die-casting shell for heat dissipation. It is efficient and sturdy, and is effectively suitable for dusty, vibration and strong interference application scenarios.
Single DDR4-3200 SO-DIMM slot supports up to 32GB
Support HDMI+DP dual display
Dual RJ45 2.5Gb Fast Ethernet
Support M.2 3042/3052 4G,5G modules for new infrastructure high-speed rail gates, etc.
SSD with M.2 Key-M 2242/2280 SATA protocol
Four RS232/422/485 serial ports, extended 10 RS232
High Tg wide temperature PCB material to ensure wide temperature stability
Industrial port protection blocks static and surge
规格 下载产品文件

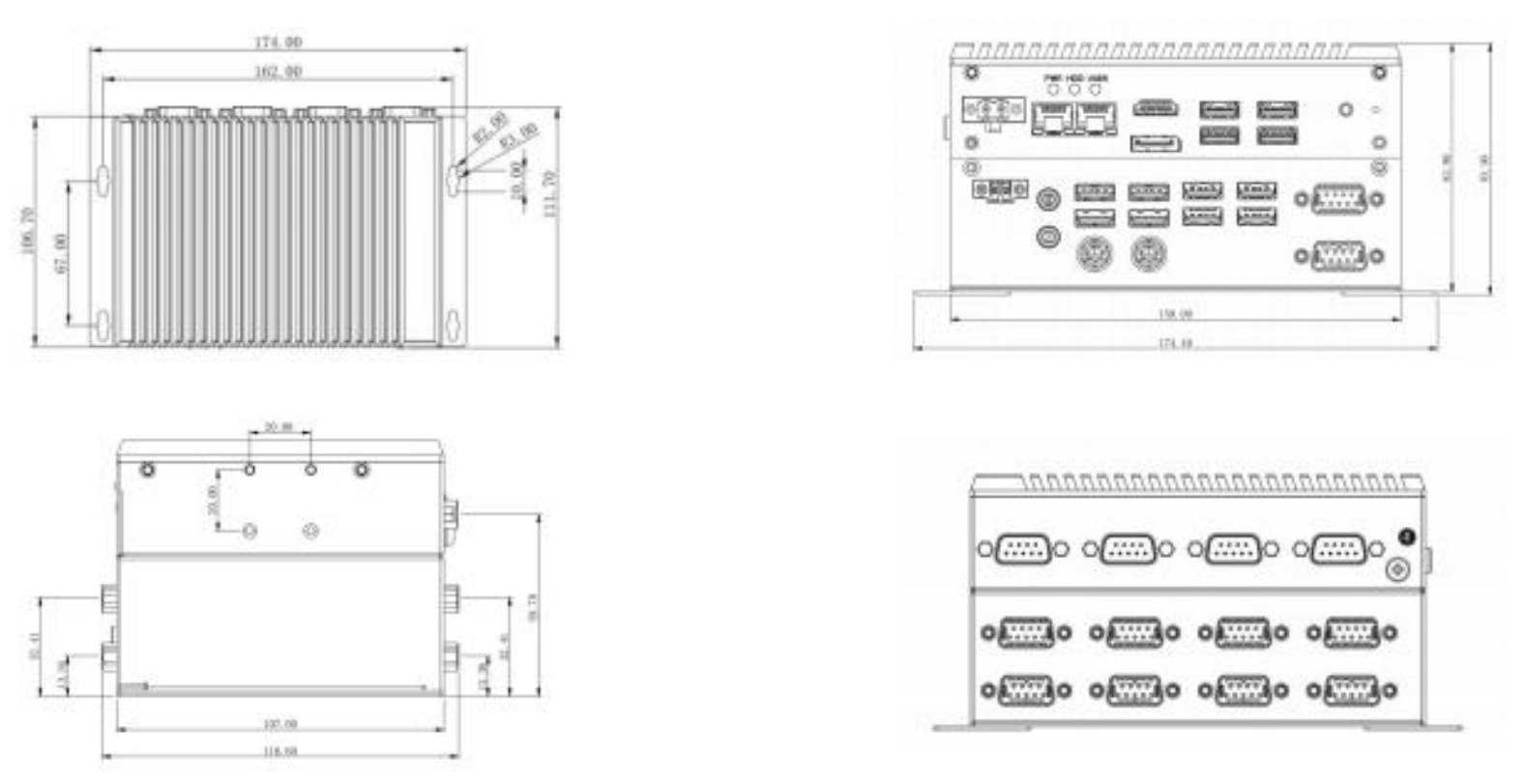

Product size and interface layout:

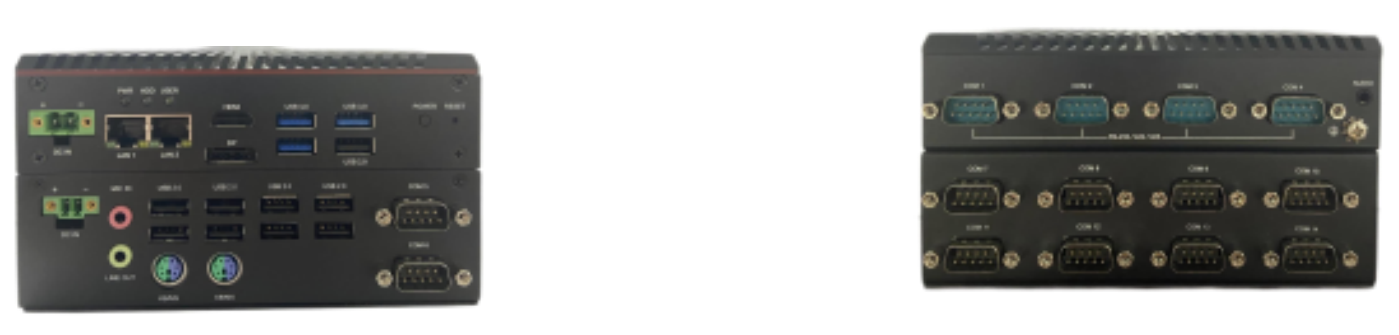

Show:
Specification information:
AIBOX-EHL-MIO2 | ||
chipset | Intel® Elkhart Lake | |
Memory | 1 × DDR4 SODIMM memory slot, up to 32GB for DDR4-3200 single | |
display interface | DP+HDMII | Support asynchronous dual display |
display parameter | Intel | Intel ® Ultra HD Graphics with Intel ® Core ™ Processor |
HDMI | max resolution up to 4096x2160 | |
DP | max resolution up to 4096x2160 | |
Networks | Interface | 2xRJ45 2.5Gb high-speed Ethernet port, 4 RJ45 Gigabit switching network ports |
Storage | Maximum data transfer rate | 600 MB/s |
Sata | SATAIII | |
M.2 | 1 (Support 2242/2280 SATA signal) | |
USB | USB 2.0 | 12 (including 2 USB2.0 with 2.0mm Wafer, 1 built-in flat) |
USB 3.0 | 3 | |
COM | DB9 | 4* RS232/422/485;2*RS232 +10*RS232 |
Digital I/O | GPIO | Internal 2 x 5Pin pins, 8-bit input and 8-bit output, switching when needed |
Keyboard mouse interface | PS2 keyboard and mouse interface | 2 |
Module | M.2 | 1 ( Key-B 3042/3052 supports 4G/5G wireless module USB3+PCIe x1) |
secure encryption | TPC/TCM | SLB9670 supports TPM2.0 |
Audio | Audio | Mic-in+Line-out |
watchdog | Time | Programmable 1~255 sec/min |
Power | DC | DC 10V~30V 2Pin terminal input (from the host power terminal access) |
Operating environment | Operating Temperature/Humidity | Recommended working environment: 0℃ ~ 45℃, relative humidity 10% ~ 85%, atmospheric pressure 85~105kPa Support wide temperature range: -10℃ ~60℃, relative humidity 10% ~ 85%, atmospheric pressure 85~105kPa In high temperature environment, please ensure that the airflow is above 0.7m/s, and use wide temperature peripherals (SSD, memory, wireless module, etc.) |
Storage Temperature/Humidity | temperature -40℃ ~ 85℃;Relative humidity 5% ~ 95%(40℃), atmospheric pressure 85~105kPa | |
Operating system | 64-bit OS | Win10 x64， Win11 x64， Linux Ubuntu 20.04 |
BIOS | AMI UEFI/Legacy BIOS | |
Size | LxWxH | 150mm(W)×116mm(D)×43mm(H) |
Reference standard of complete machine | Comply with IEC 60068-2-64, GB/T 9813.4-2017(national standard for industrial application microcomputer) | |
installation mode | Integrated installation after combination with host | |
Accessories List:
Accessory Description | Specification | number |
Installing retaining bracket | One pair of straight and 90° mounting brackets | 2 |
Drive CD (including electronic file manual) | 1 | |
Power adapter | 1 | |
COM and GPIO terminal blocks | 2 |
Ordering Information:
Model | collocation |
AIBOX-EHL13 No Expansion | Industrial Barebone J6413,2* 2.5GbE, 3USB3, 1USB2, 4COM, M.2 SSD, 4G_5G, no expansion, with power supply |
AIBOX-EHL13-1 with extension | Industrial BOX,J6413,2* 2.5GbE, 4 *SW LAN, 16GPIO,PS2,3USB3,5USB2,6COM,M.2 -3052(optional Wifi), with power supply |
AIBOX-EHL13-2 with extension | J6413,2*2.5GbE,3USB3,10USB2,14COM,M.2-3052 |
Product size and interface layout:
Show:
Specification information:
AIBOX-EHL-MIO2 | ||
chipset | Intel® Elkhart Lake | |
Memory | 1 × DDR4 SODIMM memory slot, up to 32GB for DDR4-3200 single | |
display interface | DP+HDMII | Support asynchronous dual display |
display parameter | Intel | Intel ® Ultra HD Graphics with Intel ® Core ™ Processor |
HDMI | max resolution up to 4096x2160 | |
DP | max resolution up to 4096x2160 | |
Networks | Interface | 2xRJ45 2.5Gb high-speed Ethernet port, 4 RJ45 Gigabit switching network ports |
Storage | Maximum data transfer rate | 600 MB/s |
Sata | SATAIII | |
M.2 | 1 (Support 2242/2280 SATA signal) | |
USB | USB 2.0 | 12 (including 2 USB2.0 with 2.0mm Wafer, 1 built-in flat) |
USB 3.0 | 3 | |
COM | DB9 | 4* RS232/422/485;2*RS232 +10*RS232 |
Digital I/O | GPIO | Internal 2 x 5Pin pins, 8-bit input and 8-bit output, switching when needed |
Keyboard mouse interface | PS2 keyboard and mouse interface | 2 |
Module | M.2 | 1 ( Key-B 3042/3052 supports 4G/5G wireless module USB3+PCIe x1) |
secure encryption | TPC/TCM | SLB9670 supports TPM2.0 |
Audio | Audio | Mic-in+Line-out |
watchdog | Time | Programmable 1~255 sec/min |
Power | DC | DC 10V~30V 2Pin terminal input (from the host power terminal access) |
Operating environment | Operating Temperature/Humidity | Recommended working environment: 0℃ ~ 45℃, relative humidity 10% ~ 85%, atmospheric pressure 85~105kPa Support wide temperature range: -10℃ ~60℃, relative humidity 10% ~ 85%, atmospheric pressure 85~105kPa In high temperature environment, please ensure that the airflow is above 0.7m/s, and use wide temperature peripherals (SSD, memory, wireless module, etc.) |
Storage Temperature/Humidity | temperature -40℃ ~ 85℃;Relative humidity 5% ~ 95%(40℃), atmospheric pressure 85~105kPa | |
Operating system | 64-bit OS | Win10 x64， Win11 x64， Linux Ubuntu 20.04 |
BIOS | AMI UEFI/Legacy BIOS | |
Size | LxWxH | 150mm(W)×116mm(D)×43mm(H) |
Reference standard of complete machine | Comply with IEC 60068-2-64, GB/T 9813.4-2017(national standard for industrial application microcomputer) | |
installation mode | Integrated installation after combination with host | |
Accessories List:
Accessory Description | Specification | number |
Installing retaining bracket | One pair of straight and 90° mounting brackets | 2 |
Drive CD (including electronic file manual) | 1 | |
Power adapter | 1 | |
COM and GPIO terminal blocks | 2 |
Ordering Information:
Model | collocation |
AIBOX-EHL13 No Expansion | Industrial Barebone J6413,2* 2.5GbE, 3USB3, 1USB2, 4COM, M.2 SSD, 4G_5G, no expansion, with power supply |
AIBOX-EHL13-1 with extension | Industrial BOX,J6413,2* 2.5GbE, 4 *SW LAN, 16GPIO,PS2,3USB3,5USB2,6COM,M.2 -3052(optional Wifi), with power supply |
AIBOX-EHL13-2 with extension | J6413,2*2.5GbE,3USB3,10USB2,14COM,M.2-3052 |
