Powered by Elkhart Lake J6413 quad-core processor
HDMI+ DP dual display
2 RJ45 2.5Gb high-speed Ethernet, 4 RJ45 Gigabit switching network ports
Support M.2 3042/3052 4G,5G modules for new infrastructure high-speed rail gates, etc.
SSD with M.2 Key- M 2242/2280 SATA protocol
6 RS232/422/485 COM ports, 6 USB ports
High Tg PCB ensures wide temperature stability ( Tg 170)
Optional without expansion/with expansion 2 complete machine
2*2.5GbE,3USB3.0,1USB2.0,4COM, 4G_5G
2*2.5Gb E,3USB3.0,10USB2.0,14COM, M.2- 3052(optional Wifi)
规格 下载产品文件

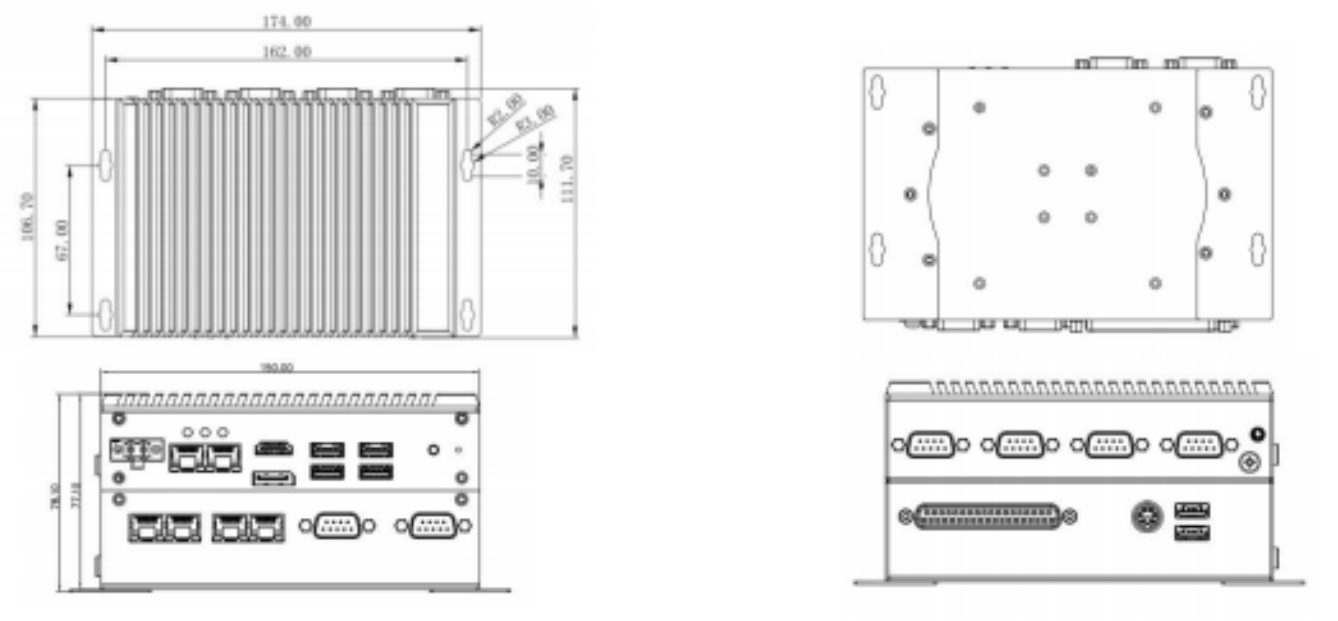

Product size and Interface Layout

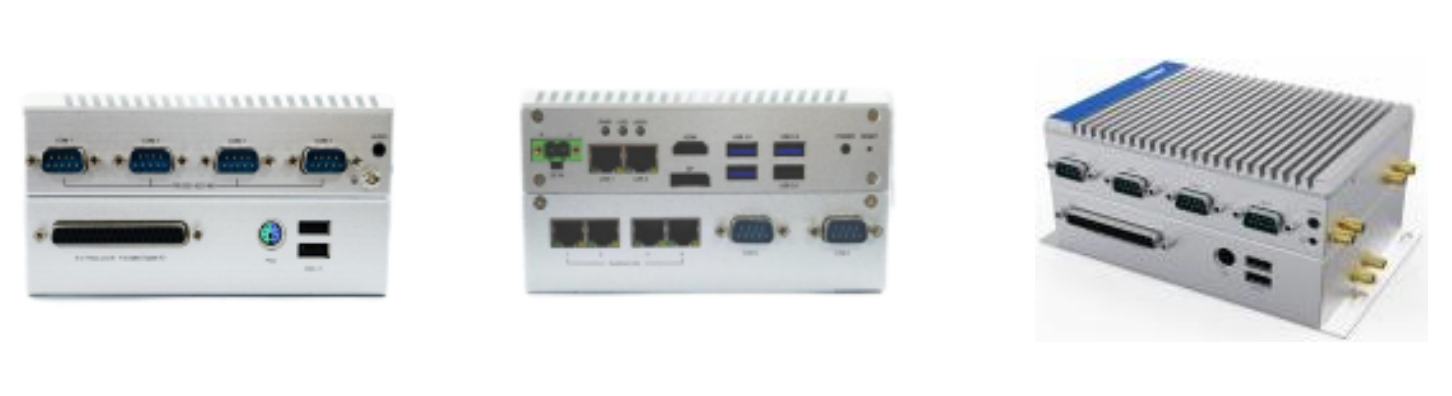

show：
Specification information:
chipset | Intel® Elkhart Lake | |
processor | Intel ® Celeron ® Processor J Series Cores 4 Threads 4 Processor Base Frequency 1.80 GHz Pulse Frequency 3.00 GHz | |
Memory | 1 × DDR4 SODIMM memory slot, up to 32GB for DDR4-3200 single | |
display interface | DP+ HDMII Support asynchronous dual display | |
display parameter | show HDMI DP | Intel ® Ultra HD Graphics with Intel ® Core ™ Processor max resolution up to 4096x2160 max resolution up to 4096x2160 |
Networks | interface 2x RJ45 2.5Gb高速以太网口， 4个RJ45千兆交换网口 | |
Storage | maximum data rate channel M.2 | 600 MB/s SATA III 1 (Support 2242/2280 SATA signal) |
USB | USB 2.0 3 USB 3.0 3 | |
COM | DB9 4X RS232/422/485;2x RS232 | |
Digital I/O | GPIO 16-bit, support 8-bit digital input with optocoupler isolation and 8-bit relay switch output | |
Keyboard mouse interface | PS2 keyboard and mouse interface 1 | |
Module | M.2 1 ( Key-B 3042/3052 supports 4G/5G wireless module USB3+PCIe x1) | |
secure encryption | TPC/TCM/TCM 1 (SLB9670, TPM2.0) | |
Audio | Audio 1 ( Mic-in+Line-out) | |
watchdog | Time | Programmable 1~255 sec/min |
Power | DC | 12~30V 90W |
Operating environment | Storage Temperature/Humidity Operating Temperature/Humidity | temperature -40℃ ~ 85℃;Relative humidity 5% ~ 95% (40℃), atmospheric pressure 85~105kPa, temperature -20℃ ~ 60℃; Relative humidity 10% ~ 85%, atmospheric pressure 85~ 105kPa |
Operating system | 64bit OS Win10 x64， Win1 1 x64， Linux Ubuntu 18.04， CentOS 8 | |
Size | LxWxH 150mm(W)×116mm(D)×38mm(H) | |
Ordering Information:
Model | collocation |
AIBOX-EHL13 No Expansion | Industrial Barebone J6413,2* 2.5GbE, 3USB3, 1USB2, 4COM, M.2 SSD, 4G_5G, no expansion, with power supply |
AIBOX-EHL13-1 with extension | Industrial BOX,J6413,2* 2.5GbE, 4 *SW LAN, 16GPIO,PS2,3USB3,5USB2,6COM,M.2 -3052(optional Wifi), with power supply |
AIBOX-EHL13-2 with extension | ,J6413,2*2.5GbE,3USB3,10USB2,14COM,M.2-3052 |
Accessories List:
Accessory Description | Specification | Number |
Installing retaining bracket | One pair of straight and 90° mounting brackets | 2 |
Drive CD (including electronic file manual) | 1 | |
Power adapter | 1 | |
COM and GPIO terminal blocks | 2 |
