Adopt Elkhart Lake J6413 quad-core processor
HDMI+ DP dual display
Dual RJ45 2.5Gb Fast Ethernet
Support M.2 3042/3052 4G, 5G modules for new infrastructure high-speed rail gates, etc.
Support M.2 Key- M 2242/2280 SATA protocol SSDFour RS232/422/485 COM
High Tg material PCB ensures wide temperature stability (Tg 170)
Optional complete machine with extension 1/extension 2, suitable for multi-USB and multi-COM applications
With extended machine 1: 2*2.5Gb E, 4*SW LAN, 16GPIO, PS2, 3USB3, 5USB2, 6CO M, M.2-3052 (Wifi is optional)
With extended machine 2: 2*2.5Gb E, 3USB3.0, 10USB2.0, 14COM, M.2-3052 (Wifi is optional)
规格 下载产品文件

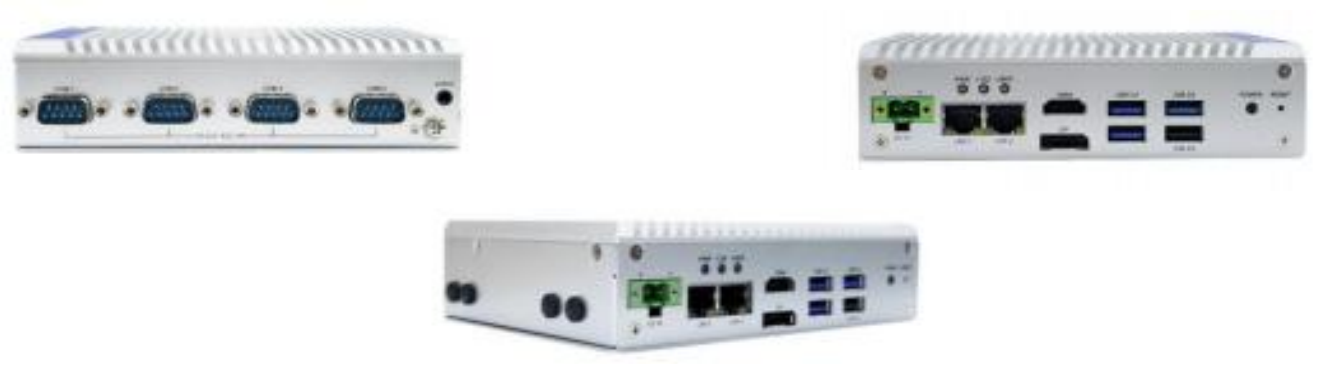

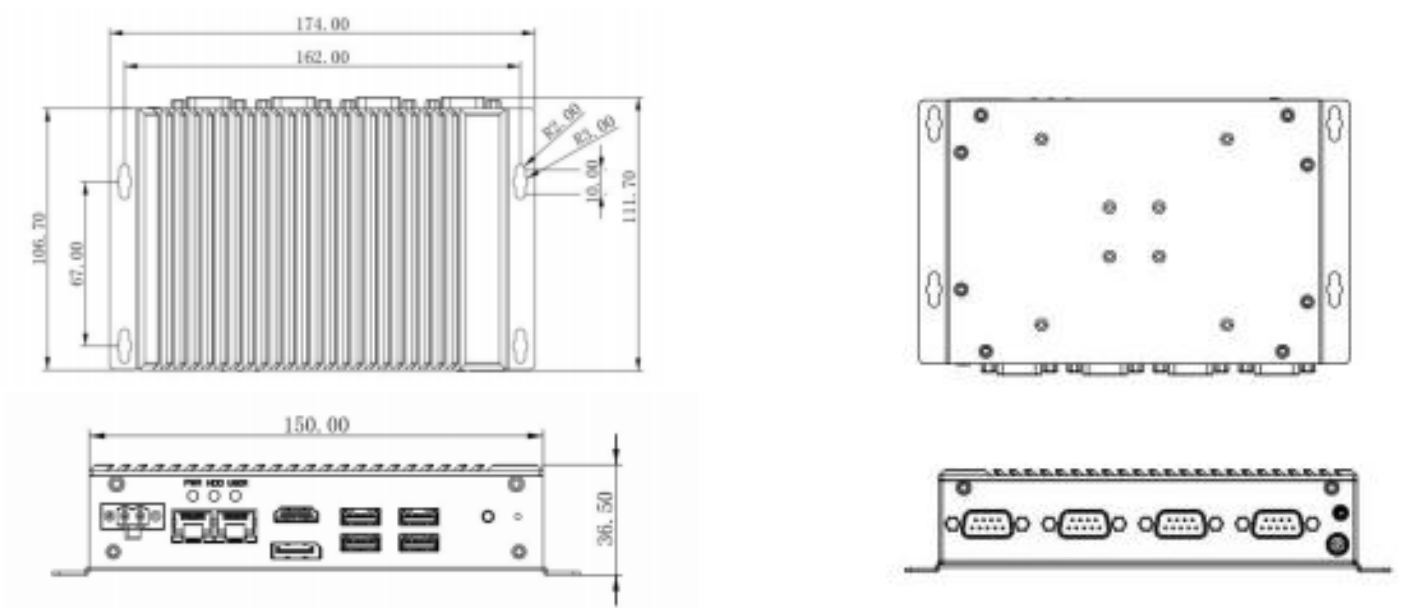

Product size and interface layout:
Show：
Specification information:
chipset | Intel® Elkhart Lake | |
processor | Intel® Celeron® Processor J-Series Cores 4 Threads 4 Processor Base Frequency 1.80 GHz Burst Frequency 3.00 GHz | |
Memory | 1 × DDR4 SODIMM memory slot, the highest support DDR4-3200 single maximum 32GB | |
display interface | DP+ HDMII supports asynchronous dual display | |
display parameters | Intel HDMI DP | Intel® UHD Graphics for Intel® Core™ Processors max resolution up to 4096x2160 max resolution up to 4096x2160 |
Networks | Interface Gbe
speed | 2 ( RJ-45) GbE LAN1: Intel I225V/LM GbE LAN2: Intel I225V/LM 10/100/1000/2500 Mbps |
Storage | Maximum data transfer rate channel M.2 | 600 MB/s SATA III 1 (Support 2242/2280 SATA signal) |
USB | USB 2.0 1 | |
COM | DB9 | 4 ( RS232/422/485) |
Module | M.2 1 (Key-B 3042/3052 supports 4G/5G wireless module USB3+PCIe x1) | |
secure encryption | TPC/TCM 1 (SLB9670 supports TPM2.0) | |
Audio | Audio 1 (Mic-in+Line-out single hole 2 in 1) | |
watchdog | Time | Programmable 1~255 seconds/minute |
Power | DC | 12~30V 90W |
use environment | Storage temperature/humidity Working temperature/humidity | Temperature -40℃ ~ 85℃; relative humidity 5% ~ 95% (40℃) , atmospheric pressure 85~105kPa temperature -20℃ ~ 60℃; relative humidity 10% ~ 85%, atmospheric pressure 85~ 105kPa |
operating system | 64-bit OS | Windows10, Linux |
Size | LxWxH 150 x 107 x 39 (mm) | |
Ordering Information:
Machine model | configuration |
AIBOX-EHL13 without extension | Industrial Barebone J6413, 2*2.5GbE, 3USB3, 1USB2, 4COM, M.2 SSD, 4G_5G, no extension, with power supply |
AIBOX-EHL13-1 with extension | Industrial BOX complete machine, J6413, 2*2.5GbE, 4*SW LAN, 16GPIO, PS2, 3USB3, 3USB2, 6COM, M.2-3052 (Wifi optional), with power supply |
AIBOX-EHL13-2 with extension | J6413,2*2.5GbE,3USB3,10USB2,14COM,M.2-3052 |
Accessories List:
Accessories description | Specification | Number |
Install the fixing bracket | One pair of straight and 90° mounting brackets | 2 |
Driver CD (including electronic manual) | 1 | |
Power Adapter | 1 | |
COM and GPIO terminals | 2 |
Product size and interface layout:
Show：
Specification information:
chipset | Intel® Elkhart Lake | |
processor | Intel® Celeron® Processor J-Series Cores 4 Threads 4 Processor Base Frequency 1.80 GHz Burst Frequency 3.00 GHz | |
Memory | 1 × DDR4 SODIMM memory slot, the highest support DDR4-3200 single maximum 32GB | |
display interface | DP+ HDMII supports asynchronous dual display | |
display parameters | Intel HDMI DP | Intel® UHD Graphics for Intel® Core™ Processors max resolution up to 4096x2160 max resolution up to 4096x2160 |
Networks | Interface Gbe
speed | 2 ( RJ-45) GbE LAN1: Intel I225V/LM GbE LAN2: Intel I225V/LM 10/100/1000/2500 Mbps |
Storage | Maximum data transfer rate channel M.2 | 600 MB/s SATA III 1 (Support 2242/2280 SATA signal) |
USB | USB 2.0 1 | |
COM | DB9 | 4 ( RS232/422/485) |
Module | M.2 1 (Key-B 3042/3052 supports 4G/5G wireless module USB3+PCIe x1) | |
secure encryption | TPC/TCM 1 (SLB9670 supports TPM2.0) | |
Audio | Audio 1 (Mic-in+Line-out single hole 2 in 1) | |
watchdog | Time | Programmable 1~255 seconds/minute |
Power | DC | 12~30V 90W |
use environment | Storage temperature/humidity Working temperature/humidity | Temperature -40℃ ~ 85℃; relative humidity 5% ~ 95% (40℃) , atmospheric pressure 85~105kPa temperature -20℃ ~ 60℃; relative humidity 10% ~ 85%, atmospheric pressure 85~ 105kPa |
operating system | 64-bit OS | Windows10, Linux |
Size | LxWxH 150 x 107 x 39 (mm) | |
Ordering Information:
Machine model | configuration |
AIBOX-EHL13 without extension | Industrial Barebone J6413, 2*2.5GbE, 3USB3, 1USB2, 4COM, M.2 SSD, 4G_5G, no extension, with power supply |
AIBOX-EHL13-1 with extension | Industrial BOX complete machine, J6413, 2*2.5GbE, 4*SW LAN, 16GPIO, PS2, 3USB3, 3USB2, 6COM, M.2-3052 (Wifi optional), with power supply |
AIBOX-EHL13-2 with extension | J6413,2*2.5GbE,3USB3,10USB2,14COM,M.2-3052 |
Accessories List:
Accessories description | Specification | Number |
Install the fixing bracket | One pair of straight and 90° mounting brackets | 2 |
Driver CD (including electronic manual) | 1 | |
Power Adapter | 1 | |
COM and GPIO terminals | 2 |
