Embedded T-Series 35W CPU Gen 6/7/8/9 i3/i5/i7/i9/G in replaceable LGA1151 package
The whole machine has no fan design, adopts aluminum alloy die-casting shell for heat dissipation, high efficiency and firmness, and can cope with dust, vibration and strong interference.
4 Intel Gigabit Ethernet ports with surge protection
Support the latest 5G compatible 4G network adaptation 5G new infrastructure
Standard 6COM,2 RS232/485 (expandable 10 strings)
8 programmable digital inputs and outputs with isolation
VGA/DVI/HDMI(optional LVDS)
4 x USB3.0, 4 x USB2.0, 1 internal encryption port
Support PCI/PCIe/Mini PCIe bus slot expansion
Support Win7/Win10/WES7/Linux , 32-bit/64-bit
规格 下载产品文件
system master control | CPU | Embedded T-Series 35W CPU Gen 6/7/8/9 i3/i5/i7/i9/G in replaceable LGA1151 package |
chipset | Optimized design of H110 chipset (C236 supports E3 V5 & V6 CPU, triple display, SATA Raid) | |
BIOS | AMI UEFI BIOS, RCT timing clock accuracy within 30PPM | |
display controller | Cpu | Intel CPU integrated display controller (depending on the CPU) |
Multi-display support | Quad-display interface VGA, DVI-D, HDMI, optional LVDS (eDP or LVDS) | |
H110 | Support asynchronous dual display of any two ports | |
C236 | Support any three-port asynchronous display | |
Memory | 类型 | Two 260-Pin DDR4 SO-DIMM slots support a single 16GB up to 32GB system memory |
maximum capacity | Support DDR4 single root up to 32GB, depending on the CPU, can support memory specifications DDR4-2133/2400/2666 | |
Network card IC | H110 | 4*LAN (2 Intel GBE, LAN1:I219LM, LAN2:I211AT) |
C236 | 4*LAN (LAN1:I219LM, LAN2, 3, 4:I211AT, 4 Intel Thousand Islanders) | |
Storage | Type | 1 个 M.2 2242/2280 SATA SSD (C236 支持 nVME x4) ❗ |
serial port | Type | After I / O 6 serial ports: COM1 & 2 supports four-line RS232 / 485, and COM3~6 supports RS232 ❗ (Optional serial port module extends over 4 RS232 or 4 RS485 serial port) ❗ |
I²C/SM bus | Type | A 4Pin SM Bus interface for the ❗ |
Audio | Audio | Support for Audio-Out, Mic-in, Line-out three audio jack, reserved to support digital audio output with power amplifier (4 Pin wafer) ❗ |
Keyboard mouse interface | Type | Front panel PS / 2 keyboard and mouse ❗ |
Digital I/O | Type | 8-digit I / O with isolation, providing power and ground, + 5V level ❗ |
LPC Extension Interface | LPC bus can expand TPM, TCM encryption module and serial port module ❗ | |
expansion bus | Type | Mainboard reserved 1 PCIe x16, 1 PCIe x1 (x4 for C236) , 1 Mini-PCIe expansion 1 M.2 B-Key 3042/3052 with SIM card support 4G/5G module (USB3+PCIex1) |
expansion bus | Type | Mainboard reserved 1 PCIe x16, 1 PCIe x1 (x4 for C236) , 1 Mini-PCIe expansion 1 M.2 B-Key 3042/3052 with SIM card support 4G/5G module (USB3+PCIex1) |
Software function | System Support | Win7/Win10/WES7/Linux , 32 bit/64 bit |
watchdog | 255-level WDT, programmable sec/min, support timeout interrupt or system reset | |
Power | Power Input | 12V~30V wide voltage DC input (Phoenix terminal), rear I/O power switch interface, power supply and hard disk indicator |
cooling system | Optional two 5010 chassis fans when using high heat expansion devices | |
Product size | Size | Without extension: 257mm(W)×191mm(D)×79mm(H) Band 2 extension: 257mm(W)×191mm(D)×134mm(H) Band 4 extension: 257mm(W)×191mm(D)×189mm(H) |
Temperature and humidity requirements | Requirements for operating temperature and humidity | When using ambient memory and storage:0℃ ~ 45℃, relative humidity 20% ~ 80%, atmospheric pressure 85~105kPa When using wide temperature memory and storage:-10~60℃, relative humidity 20% ~ 80%, atmospheric pressure 85~105kPa |
Storage temperature and humidity requirements: | temperature -40℃ ~ 80℃;Relative humidity 20% ~ 90%(40℃), atmospheric pressure 85~105kPa | |
anti-vibration performance | When using 2.5 "HDD: working state 1Grms@5~500Hz , non-working state:2Grms@5~500Hz When using SSD:Working state 3Grms@5~500Hz , non-working state:3Grms@5~500Hz | |
impact resistance | Use SSD solid state disk: working state, 15G@11ms half sine wave, 3-way, 3 times/way, non-working state:50G | |
Reference standard of complete machine | Comply with GB/T 9813.4-2017(National Standard for Industrial Application Microcomputers) | |
Weight | Net weight of the whole machine without extension is about 3.0KG |

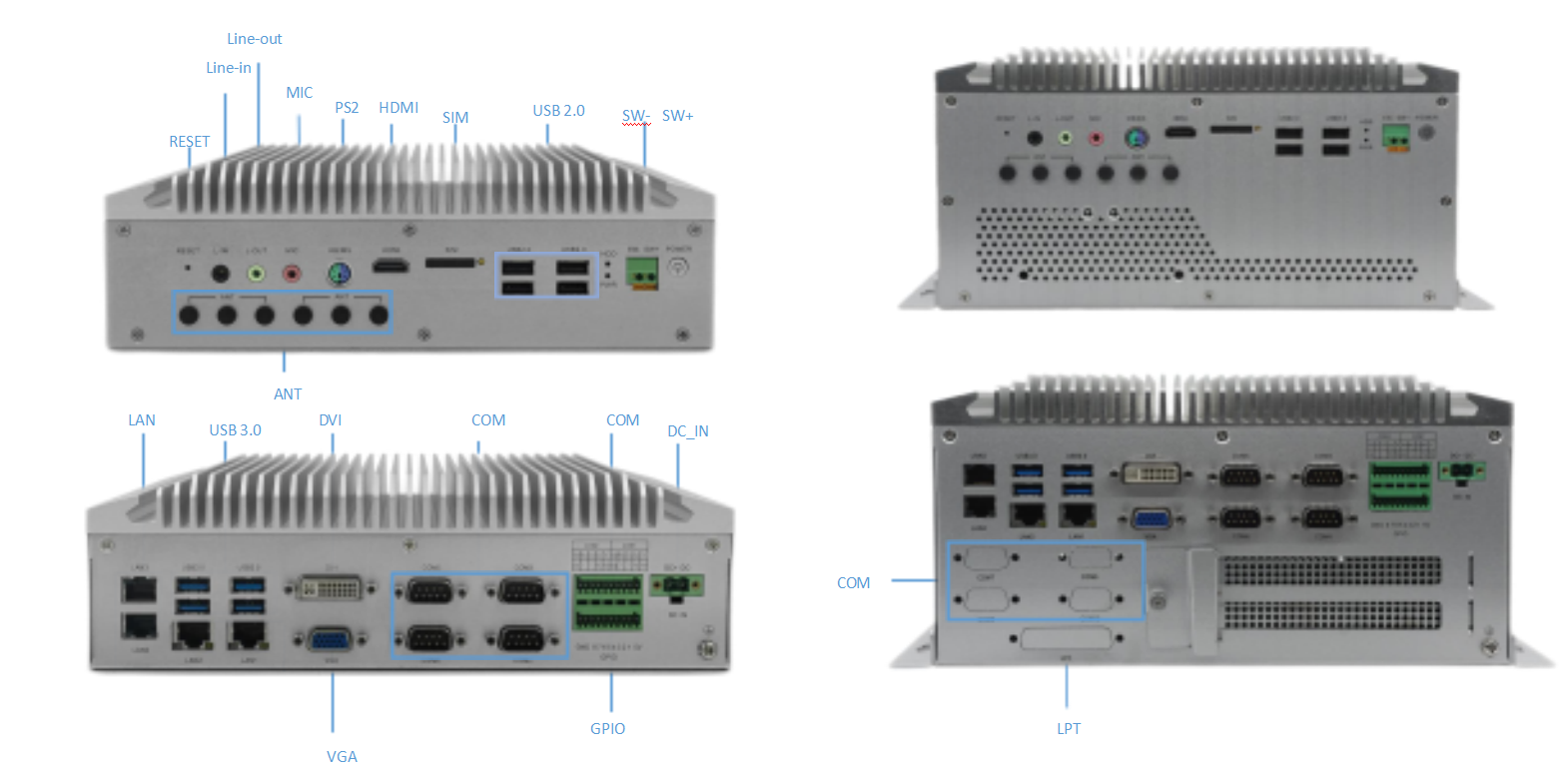

Product diagram:

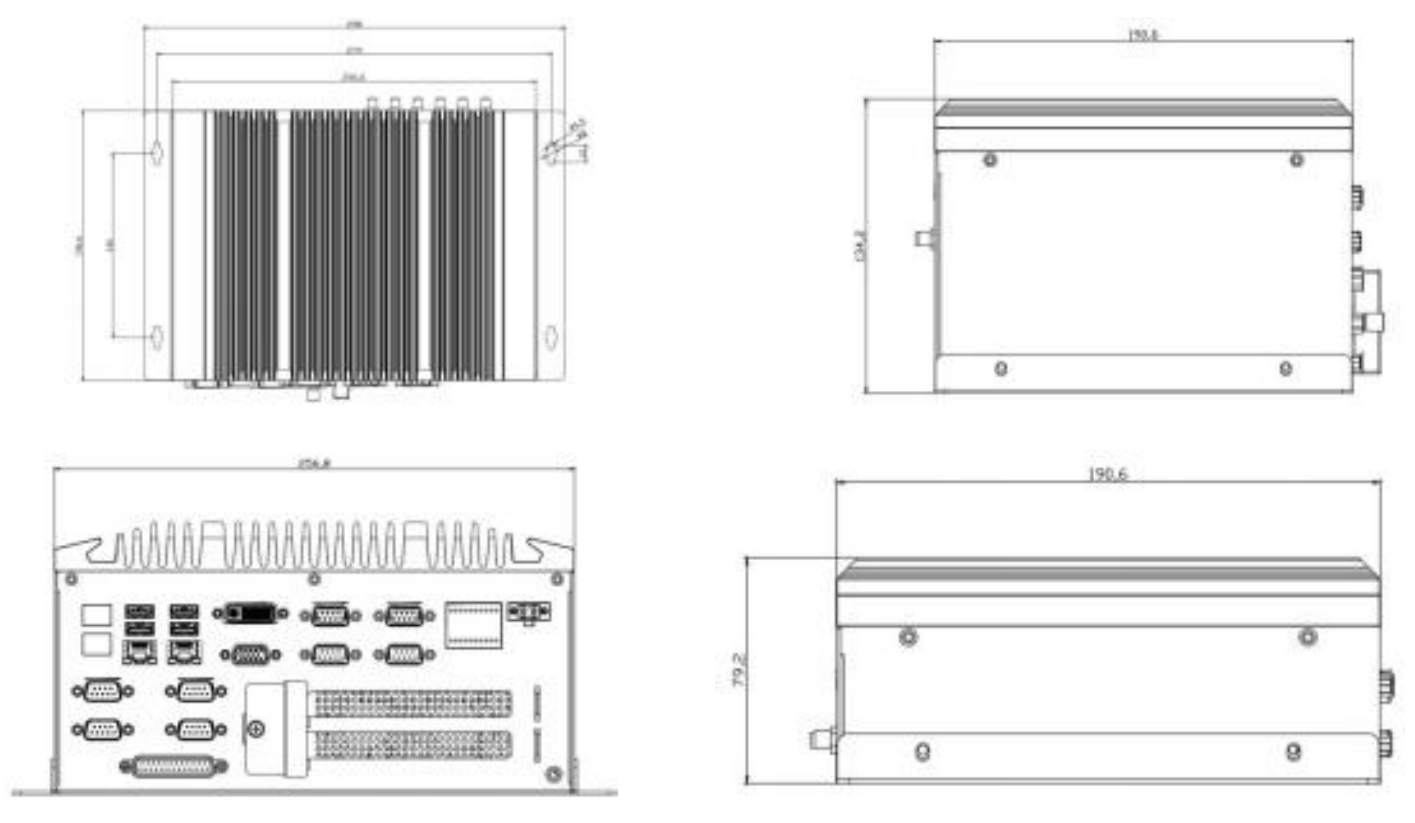

Product size drawing:
Product Code | Description |
AIBOX-1151 No Expansion | Industrial Barebone,H110 chip, 4LAN, 2SATA3.0, mSATA;M.2,4G_5G, without expansion, with power supply |
AIBOX-1151-C236 No Expansion | Industrial Barebone,C236 chip, 4LAN, 2SATA3.0, mSATA;M.2,4G_5G, without expansion, with power supply |
AIBOX-1151-2P Dual Expansion | Industrial Barebone, H110,4LAN,2PCI,2SATA3.0,1 mSATA;1M.2,4G_5G, optional fan, with power supply |
AIBOX-1151-1E1P Dual Expansion | Industrial Barebone,H110,4LAN,1PCIe x16, 1PCI,2SATA3.0, 1mSATA;1M.2,4G_5G, optional fan, with power supply |
AIBOX-1151-2E Dual Expansion | Industrial Barebone,H110,4LAN,1PCIe x16,1PCIe x1,2SATA3.0, 1mSATA;1M.2,4G_5G, optional fan, with power supply |
AIBOX-1151-2E236 Dual Expansion | Industrial Barebone, C236,4LAN,PCIex16,1PCIex4,2SATA3.0,1 mSATA;1M.2,4G_5G, fan, with power supply |
