Support full range of LGA1200 Gen.10&11W/i9/i7/i5/i3/G TDP 65W(configurable)
The main engine has no wind design, high performance and optional wind. It adopts aluminum alloy die-casting shell for heat dissipation, high efficiency and firmness, and can cope with dust, vibration and strong interference.
Standard 2 Intel Gigabit Ethernet ports with 6 surge protection
16 programmable digital inputs and outputs with isolation
Standard 6COM,2 RS232/485 (expandable 10 strings)
DVI/VGA/DP/HDMI
Standard 2 high with 8 USB 3.2, 1 internal encryption port
Support for full-length GPU and AI computing cards for deep learning
规格 下载产品文件
CPU | Gen10&11 i9/i7/i5/i3/G CPU TDP up to 125W in Intel LGA1200 package The W580 also supports Gen10 & 11 Xeon W-series server CPUs |
Chipset | Intel® H510 Chipset with optional W580 Chipset |
Display | Intel CPU integrated display controller (depending on the CPU) |
Memory | 2 x 260Pin DDR4 SO-DIMM memory slots 2133/2400/2666/2933/3200(W580 supports ECC) Single root 32GB Maximum support 64GB |
System | Win10 x64， Win11 x64， Linux Ubuntu 18.04 |
BIOS | AMI UEFI BIOS |
Storage | Standard 2 SATA3.0 (two 2.5-inch hard disk mounting brackets are reserved) 1 x M.2 2280 Key-M 10th generation CPU supports SATA, 11th generation supports SATA/nVME adaptive, High-configuration support one more M.2 2280 Key-M SSD supporting nVME protocol |
Audio | Front IO supports MIC-In, Speaker-Out two-hole audio |
Networks | Standard configuration 2 high configuration 6 Intel high-speed network port:LAN1 i219V,LAN2 with i225-LM support Vpro, other i225V |
display interface | Four display output DP+HDMI+ VGA+DVI-D, standard dual display, high with three display |
SMbus/I²C interface | One 4Pin SM Bus interface |
USB interface | Standard 2 x 8 x USB3.2 Gen.1 Type A chassis front and rear panels directly led out; 1 USB 3.0 vertical plug in the board, preset for USB Dongle; |
serial ports | 6 serial ports: COM 1 & 2 support RS232/485, COM3~6 support RS232 (Optional serial port module to expand more than 4 RS232 or 4 RS485 serial ports) |
Extend | 1 PCIe x16, 1 PCIe x1 (x4 for W580) , 2 PCI expansion, 1 Mini-PCIe expansion 1 x M.2 Key-B 3042/3052 with SIM card support 4G/5G module (USB3+PCIex1) |
PS2 Keyboard/LPT Interface | Front Panel PS/2 Keyboard and Mouse |
Digital I/O | 16-bit digital I/O with MOS isolation, supply and ground, +5V level |
TPM interface | Onboard encryption chip SLB9670(SLB9672) support TPM2.0(default) / BOM optional TCM chip |
Power Input | Host 12V~30V wide voltage DC input (white 8PinATX plug) , with light power switch, hard disk indicator and alarm light GPU card independent power supply 12V@20~30A(support large card) with two black 6+2Pin terminal direct input |
Product size | size: 358mm x 230mm x 189mm Maximum expandable PCIE card size:316mm x 158mm × 60mm Maximum expandable PCI card size:175mm x 120mm x 20mm |
Atmospheric conditions of working environment | When using ambient memory and storage:0℃ ~ 45℃, relative humidity 20% ~ 80%, atmospheric pressure 85~105kPa When using wide temperature memory and storage:-10~60℃, relative humidity 20% ~ 80%, atmospheric pressure 85~105kPa |
Storage Ambient Atmospheric Conditions | temperature -40℃ ~ 80℃;Relative humidity 20% ~ 90%(40℃), atmospheric pressure 85~105kPa |
anti-vibration performance | When using 2.5 "HDD: working state 1Grms@5~500Hz , non-working state:2Grms@5~500Hz When using SSD solid state disk: working state 3Grms@5~500Hz , non-working state:3Grms@5~500Hz |

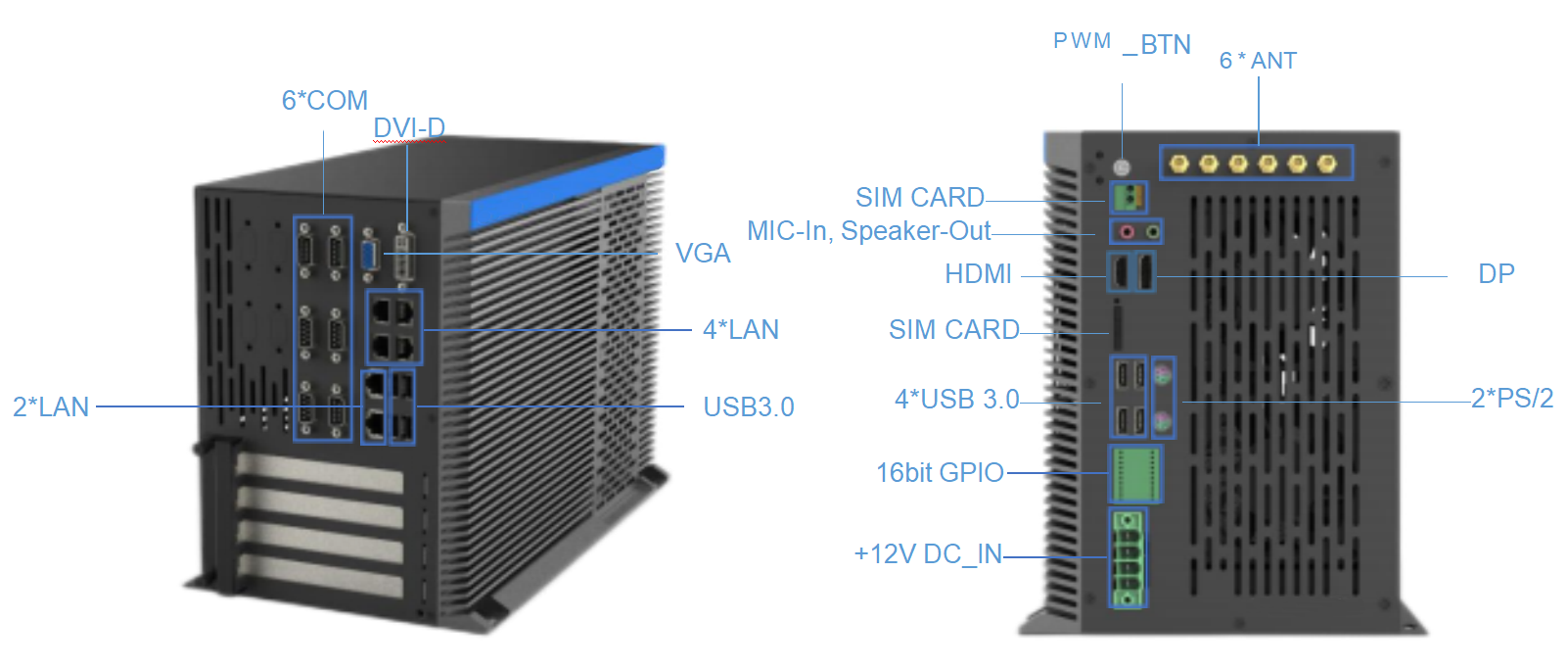

Product diagram：

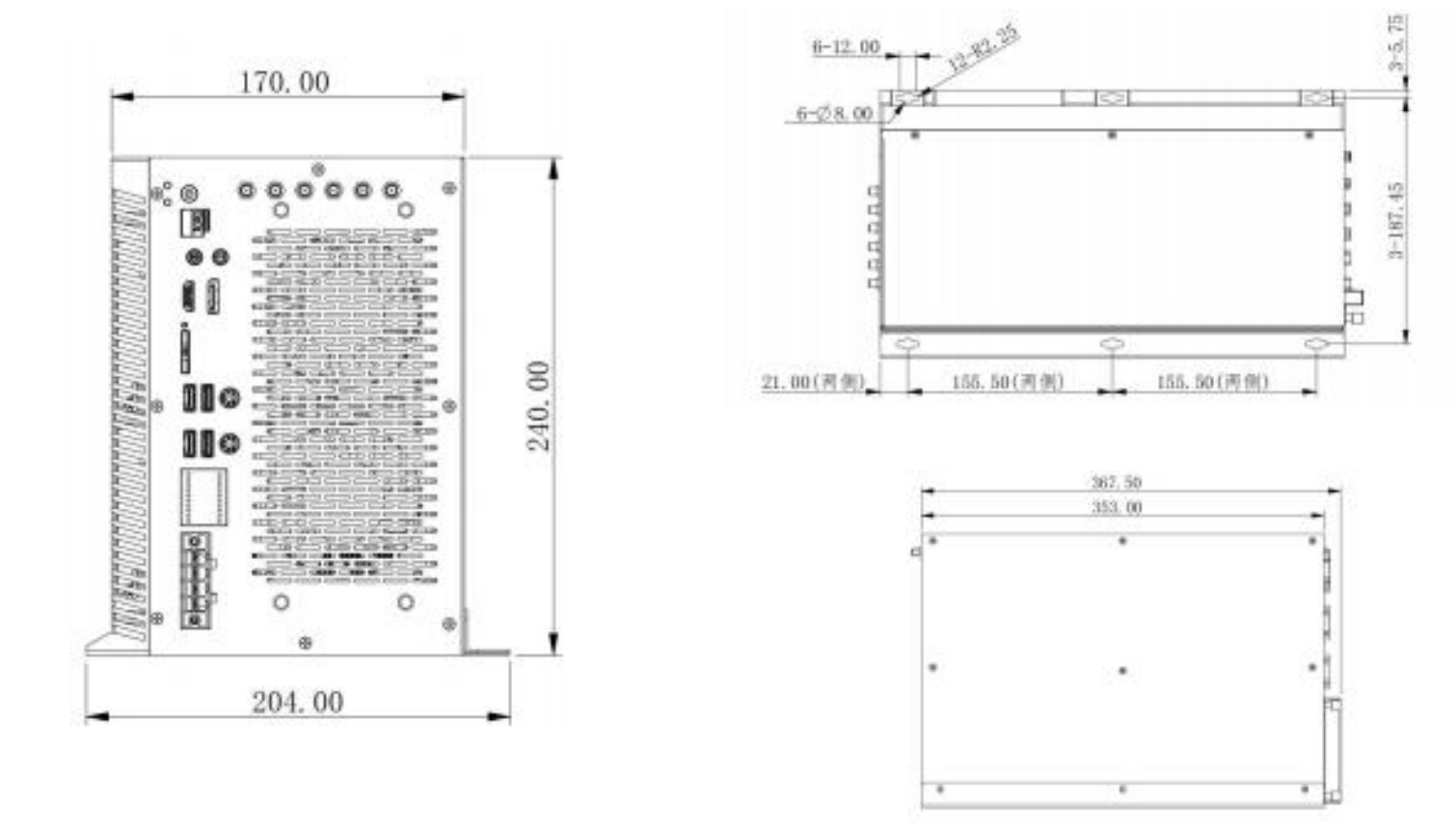

Product size drawing:
Product selection:
Product Code | Description |
AIBOX-1200 Standard | H510/2LAN/2USB3/6USB2/6COM/16GPIO/PCIex16/PCIeX1/M2-2280SATA/M2-3052/M2-2230/Mini-PCIe/360W Power Supply |
AIBOX-1200W | W580/6LAN/8USB3/4USB2/6COM/16GPIO/PCIex16/PCIeX4/2*M2-2280nVME/Raid01, M2-3052/Mini-PCIe/500W |
CPU | Gen10&11 i9/i7/i5/i3/G CPU TDP up to 125W in Intel LGA1200 package The W580 also supports Gen10 & 11 Xeon W-series server CPUs |
Chipset | Intel® H510 Chipset with optional W580 Chipset |
Display | Intel CPU integrated display controller (depending on the CPU) |
Memory | 2 x 260Pin DDR4 SO-DIMM memory slots 2133/2400/2666/2933/3200(W580 supports ECC) Single root 32GB Maximum support 64GB |
System | Win10 x64， Win11 x64， Linux Ubuntu 18.04 |
BIOS | AMI UEFI BIOS |
Storage | Standard 2 SATA3.0 (two 2.5-inch hard disk mounting brackets are reserved) 1 x M.2 2280 Key-M 10th generation CPU supports SATA, 11th generation supports SATA/nVME adaptive, High-configuration support one more M.2 2280 Key-M SSD supporting nVME protocol |
Audio | Front IO supports MIC-In, Speaker-Out two-hole audio |
Networks | Standard configuration 2 high configuration 6 Intel high-speed network port:LAN1 i219V,LAN2 with i225-LM support Vpro, other i225V |
display interface | Four display output DP+HDMI+ VGA+DVI-D, standard dual display, high with three display |
SMbus/I²C interface | One 4Pin SM Bus interface |
USB interface | Standard 2 x 8 x USB3.2 Gen.1 Type A chassis front and rear panels directly led out; 1 USB 3.0 vertical plug in the board, preset for USB Dongle; |
serial ports | 6 serial ports: COM 1 & 2 support RS232/485, COM3~6 support RS232 (Optional serial port module to expand more than 4 RS232 or 4 RS485 serial ports) |
Extend | 1 PCIe x16, 1 PCIe x1 (x4 for W580) , 2 PCI expansion, 1 Mini-PCIe expansion 1 x M.2 Key-B 3042/3052 with SIM card support 4G/5G module (USB3+PCIex1) |
PS2 Keyboard/LPT Interface | Front Panel PS/2 Keyboard and Mouse |
Digital I/O | 16-bit digital I/O with MOS isolation, supply and ground, +5V level |
TPM interface | Onboard encryption chip SLB9670(SLB9672) support TPM2.0(default) / BOM optional TCM chip |
Power Input | Host 12V~30V wide voltage DC input (white 8PinATX plug) , with light power switch, hard disk indicator and alarm light GPU card independent power supply 12V@20~30A(support large card) with two black 6+2Pin terminal direct input |
Product size | size: 358mm x 230mm x 189mm Maximum expandable PCIE card size:316mm x 158mm × 60mm Maximum expandable PCI card size:175mm x 120mm x 20mm |
Atmospheric conditions of working environment | When using ambient memory and storage:0℃ ~ 45℃, relative humidity 20% ~ 80%, atmospheric pressure 85~105kPa When using wide temperature memory and storage:-10~60℃, relative humidity 20% ~ 80%, atmospheric pressure 85~105kPa |
Storage Ambient Atmospheric Conditions | temperature -40℃ ~ 80℃;Relative humidity 20% ~ 90%(40℃), atmospheric pressure 85~105kPa |
anti-vibration performance | When using 2.5 "HDD: working state 1Grms@5~500Hz , non-working state:2Grms@5~500Hz When using SSD solid state disk: working state 3Grms@5~500Hz , non-working state:3Grms@5~500Hz |
Product diagram：
Product size drawing:
Product selection:
Product Code | Description |
AIBOX-1200 Standard | H510/2LAN/2USB3/6USB2/6COM/16GPIO/PCIex16/PCIeX1/M2-2280SATA/M2-3052/M2-2230/Mini-PCIe/360W Power Supply |
AIBOX-1200W | W580/6LAN/8USB3/4USB2/6COM/16GPIO/PCIex16/PCIeX4/2*M2-2280nVME/Raid01, M2-3052/Mini-PCIe/500W |
