Intel3965U/i5 - 7200U/i7-7500U CPU
The whole machine has no fan design, directly adopts aluminum alloy die-casting shell for heat dissipation, high efficiency and firmness, and can cope with dust, vibration and strong interference.
Three Intel Gigabit Ethernet ports meet the high-speed and stable requirements of industrial robots and machine vision
Rich industrial I/O:4COM,6USB,SMBus,16bit GPIO, mSATA,Mini-PCIe,12-24V DC Wide Input
One DDR4 SODIMM memory slot supports up to 16GB
High Tg wide temperature PCB material to ensure wide temperature stability
Industrial-grade port protection blocks static electricity and surges, effectively protecting the core of the system
Industrial interface chip to ensure stable and reliable data
规格 下载产品文件

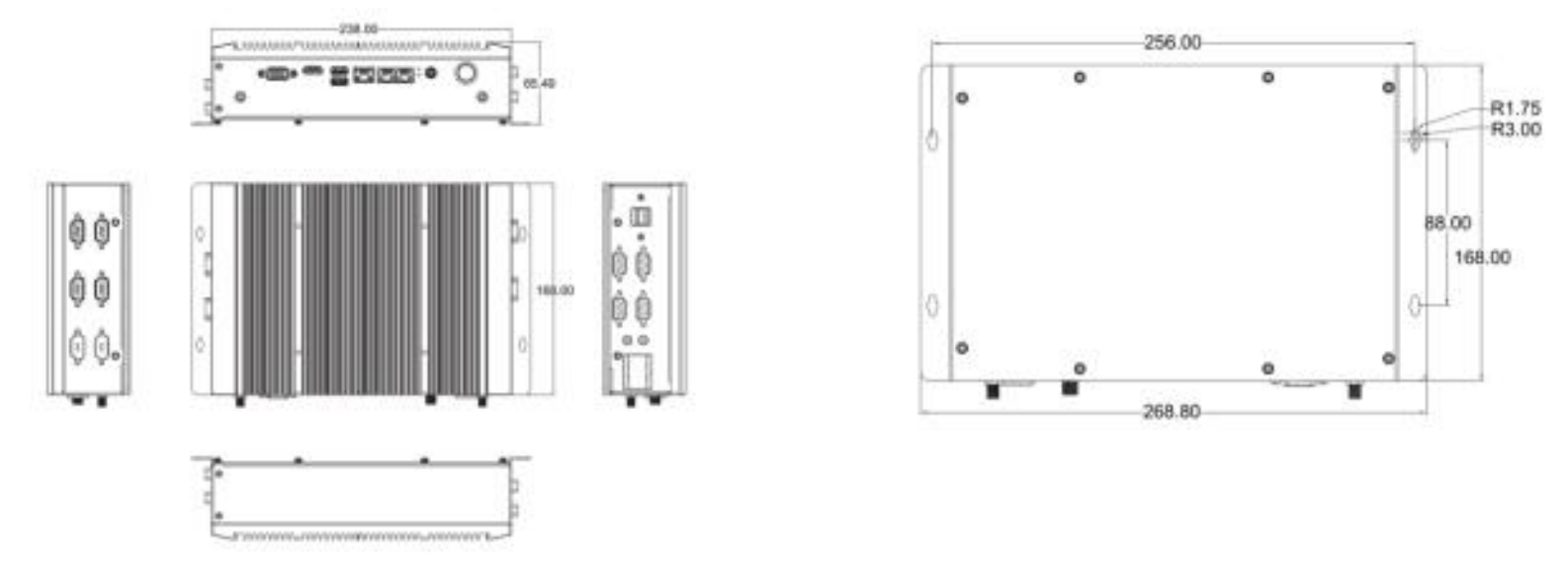

Product size and interface layout:
Ordering Information:
Model | chipset | Memory | Display | Storage | USB3 | USB2 | COM | LAN | PCIe |
AIBOX-KBU65 | 3965U | 1SODIMM | Three display | 1SATA 1mSATA | 2 | 4 | 4(8) | 3 | 2PCIe |
AIBOX-KBUi5 | i5-7200U | 1SODIMM | Three display | 1SATA 1mSATA | 2 | 4 | 4(8) | 3 | 2PCIe |
AIBOX-KBUi7 | i7-7500U | 1SODIMM | Three display | 1SATA 1mSATA | 2 | 4 | 4(8) | 3 | 2PCIe |
Accessories List:
Accessory Description | Specification | Number |
SATA hard disk adapter | SATA-7P(female)/with metal spring/with SATA power cable | 1 |
Drive CD (including electronic file manual) | 1 | |
Power adapter | 1 | |
Digital I/O terminal blocks | 2 |
Product Specification:
Product Code | AIBOX-KBU | |
Product Type | Fanless low-power intelligent manufacturing complete machine | |
processor | Board mount Intel3965U or i5 - 7200U or i7-7500U CPU | |
chipset | Intel® SKL/KBL-U SOC | |
Memory | Supports 1 DDR4 SO-DIMM memory slot, MAX 16GB | |
display controller | Intel SKL/KBL Integrated HD Graphics 620/520/510 | |
display interface | Three display output VGA+HDMI+LVDS, support independent dual display, maximum resolution 1920×2000 | |
Storage | SATA | The motherboard supports 1 SATA, and the whole machine supports 1 2.5" SATA HDD/SSD Bays |
SSD | Supports one mSATA (with Mini PCIe Co-Lay, default mSATA) | |
Audio | Support Mic-in, Spk-out | |
Networks | 3 x Intel RJ45 Gigabit network interfaces | |
USB | 2 board edge USB3.0, 4 board USB2.0 pins | |
SM bus/I²C interface | 1 x SM bus extension | |
serial port | COM1 supports RS232/422/485, COM2~4 supports full-featured RS232 | |
PS2 Keyboard/LPT Interface | Not supported | |
Digital I/O | Two 8-bit total 16-bit digital I/O, providing power and ground, +5V level output | |
LPC Extension Interface | Provide 1 LPC local bus interface expandable 4 serial port module | |
TPM interface | Support for a secure chip interface | |
Power | Support 12~24V DC wide voltage input, support DC-Jack and ATX4Pin two input 2 choose 1 | |
expansion bus | 1 x Mini-PCIe (with SIM card holder supporting 4G module), 1 x mSATA with Mini PCIe Co-Lay (default mSATA) | |
Atmospheric conditions of working environment | Temperature 0℃~40℃ (optional -40~70℃), relative humidity 20%~80%, atmospheric pressure 85~105kPa | |
Storage Ambient Atmospheric Conditions | Temperature -40℃~80℃; relative humidity 20%~93%(40℃), atmospheric pressure 85~105kPa | |
anti-vibration performance | Operating state 1Grms@5~500Hz , non-operating state:2Grms@5~500Hz | |
impact resistance | 3-way, 10G (11ms half sine wave) , 3 times/way | |
Watch Dog | 255 levels of programmable sec/min with timeout interrupt or system reset | |
BIOS | AMI UEFI BIOS | |
Operating system | Win7/Win10/WES7/Linux , 32bit/64bit | |
PCB color matching requirements | PCB is painted with industrial green | |
size (LxWxH) | 268mm x 168mm x 65mm (without fixed base plate 238x168x65mm) | |
Product size and interface layout:
Ordering Information:
Model | chipset | Memory | Display | Storage | USB3 | USB2 | COM | LAN | PCIe |
AIBOX-KBU65 | 3965U | 1SODIMM | Three display | 1SATA 1mSATA | 2 | 4 | 4(8) | 3 | 2PCIe |
AIBOX-KBUi5 | i5-7200U | 1SODIMM | Three display | 1SATA 1mSATA | 2 | 4 | 4(8) | 3 | 2PCIe |
AIBOX-KBUi7 | i7-7500U | 1SODIMM | Three display | 1SATA 1mSATA | 2 | 4 | 4(8) | 3 | 2PCIe |
Accessories List:
Accessory Description | Specification | Number |
SATA hard disk adapter | SATA-7P(female)/with metal spring/with SATA power cable | 1 |
Drive CD (including electronic file manual) | 1 | |
Power adapter | 1 | |
Digital I/O terminal blocks | 2 |
Product Specification:
Product Code | AIBOX-KBU | |
Product Type | Fanless low-power intelligent manufacturing complete machine | |
processor | Board mount Intel3965U or i5 - 7200U or i7-7500U CPU | |
chipset | Intel® SKL/KBL-U SOC | |
Memory | Supports 1 DDR4 SO-DIMM memory slot, MAX 16GB | |
display controller | Intel SKL/KBL Integrated HD Graphics 620/520/510 | |
display interface | Three display output VGA+HDMI+LVDS, support independent dual display, maximum resolution 1920×2000 | |
Storage | SATA | The motherboard supports 1 SATA, and the whole machine supports 1 2.5" SATA HDD/SSD Bays |
SSD | Supports one mSATA (with Mini PCIe Co-Lay, default mSATA) | |
Audio | Support Mic-in, Spk-out | |
Networks | 3 x Intel RJ45 Gigabit network interfaces | |
USB | 2 board edge USB3.0, 4 board USB2.0 pins | |
SM bus/I²C interface | 1 x SM bus extension | |
serial port | COM1 supports RS232/422/485, COM2~4 supports full-featured RS232 | |
PS2 Keyboard/LPT Interface | Not supported | |
Digital I/O | Two 8-bit total 16-bit digital I/O, providing power and ground, +5V level output | |
LPC Extension Interface | Provide 1 LPC local bus interface expandable 4 serial port module | |
TPM interface | Support for a secure chip interface | |
Power | Support 12~24V DC wide voltage input, support DC-Jack and ATX4Pin two input 2 choose 1 | |
expansion bus | 1 x Mini-PCIe (with SIM card holder supporting 4G module), 1 x mSATA with Mini PCIe Co-Lay (default mSATA) | |
Atmospheric conditions of working environment | Temperature 0℃~40℃ (optional -40~70℃), relative humidity 20%~80%, atmospheric pressure 85~105kPa | |
Storage Ambient Atmospheric Conditions | Temperature -40℃~80℃; relative humidity 20%~93%(40℃), atmospheric pressure 85~105kPa | |
anti-vibration performance | Operating state 1Grms@5~500Hz , non-operating state:2Grms@5~500Hz | |
impact resistance | 3-way, 10G (11ms half sine wave) , 3 times/way | |
Watch Dog | 255 levels of programmable sec/min with timeout interrupt or system reset | |
BIOS | AMI UEFI BIOS | |
Operating system | Win7/Win10/WES7/Linux , 32bit/64bit | |
PCB color matching requirements | PCB is painted with industrial green | |
size (LxWxH) | 268mm x 168mm x 65mm (without fixed base plate 238x168x65mm) | |
