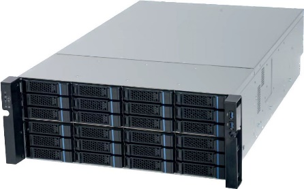

Description of 4U Storage Server Powered by Next-Generation Domestic Feiteng FT-2000+ Processor
Introducing a 4U storage server tailored for enterprise-level data centers, leveraging the cutting-edge domestic Feiteng FT-2000+ processor. With 24 front-facing hot-swappable 3.5/2.5-inch SATA/SAS drive bays and support for up to 2 GPU cards, this server is engineered to meet the demands of centralized data management, governmental systems, military applications, and critical industries.
Key Features:
Enterprise-grade Computing Power: Harnesses robust computational performance to tackle critical business operations.
Scalability: Offers expandable capabilities to accommodate evolving business needs.
Flexible Array Options: Supports various array configurations to adapt to diverse storage requirements.
Intelligent Management System: Equipped with an intelligent management system for streamlined operations.
Rich Data Protection Features: Provides comprehensive data protection functionalities for safeguarding valuable assets.
Remote Data Management and Protection: Facilitates effortless remote data management and protection, ensuring operational continuity and security.
This server represents a reliable solution for enterprises seeking powerful computing performance, scalable storage options, and advanced data management capabilities.
Form Factor：Standard 19-inch 2U Rackmount
CPU：
Model: FT-2000+
Cores: 64 cores
Memory：
Channels: Eight-channel
Type: DDR4 RDIMM
Frequency: Up to 2666MHz
Maximum Capacity: 512GB
Storage：
Front Bays: 12 hot-swappable 3.5/2.5-inch SATA/SAS drive bays
Rear Bays: 2 2.5-inch system drive bays
RAID Support: Supports RAID1 for system drives to ensure OS security
SATA Controller: Onboard SATA 3.0 controller, supports software RAID 0, 1, 10
RAID Card Expansion: Supports various RAID protection levels
Display and Networking：
BMC Integrated Display Controller
Onboard Gigabit Ethernet Controller
External and Onboard Expansion：
Front Ports: 2 USB 3.0 ports
Rear Ports:
4 USB 3.0 ports
4 Gigabit Ethernet ports
1 dedicated remote management Ethernet port
1 VGA port
1 COM port
Onboard Interfaces:
2 USB 2.0 and USB 3.0 header ports
2 PCIE 3.0 x16 slots
4 PCIE 3.0 x8 slots
1 MiniPCIE slot (PCIE and USB signals)
4 SATA 3.0 ports
1 M.2 2280 slot, supports cache acceleration
Power Supply：Standard: 550W 1+1 redundant power supply
Server Management：
Onboard BMC Management Module: Provides 1 dedicated remote management Ethernet port, supports KVM Over IP, remote power on/off, status monitoring, and more.
Firmware：Security: Proprietary secure BIOS/BMC firmware
Operating System：Supported OS: Kirin Linux, UOS, and ZTE New Start server operating systems
Physical Dimensions (HWD)：Dimensions: 87 x 438 x 668.2 mm
Environmental Requirements：
Temperature:
Operating: 0℃ to 40℃
Non-operating: -40℃ to 60℃
Humidity:
Operating: 10% to 90%
Non-operating: 5% to 95% (non-condensing)
Key Configuration (Repeated Section)：
Form Factor: Standard 19-inch 2U Rackmount
CPU: FT-2000+, 64 cores
