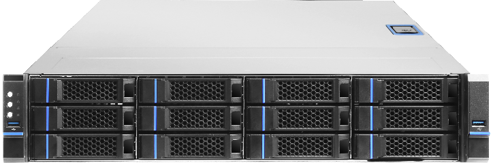

Based on the next-generation domestic Feiteng 64-core FT-2000+ processor, this 2U storage server features 12 front 3.5/2.5-inch SATA/SAS hot-swappable drive bays. It delivers robust enterprise-level computing performance and scalability, suitable for high-security information processing needs. This server is primarily used in national government, military systems, and key industry clients.
High Performance
Based on the 32-core Tengyun S5000C high-performance general-purpose microprocessor, offering robust computing capabilities.
Supports up to 3 half-height, dual-width GPU/AI cards, enhancing computing power.
8-channel DDR5 RDIMM memory slots, with a maximum frequency of 4400MHz.
6 PCIe 5.0 expansion slots, providing higher performance and greater expandability.
Onboard 2 M.2 2280 slots, supporting cache acceleration.
Onboard dedicated Ethernet port for remote management.
Intelligent array support significantly enhances I/O performance.
High Reliability
Supports multiple RAID protection levels to improve data processing performance and ensure data security.
Fully shielded against electromagnetic radiation, interference, and static electricity.
1+1 fully redundant power supply design for increased operational security.
Low Power Consumption
Configured with high-efficiency power supplies and dynamic cooling mechanisms, significantly reducing energy costs while maintaining performance.
Intelligent cooling system adjusts fan speeds based on the temperature of key components, saving energy, reducing noise, and increasing fan reliability.
Security and Control
Independently controllable information industry system, helping to eliminate security risks in strategic fields such as e-government and national defense.
Features domestically produced, independently controllable secure BIOS/BMC.
Supports server operating systems like Galaxy Kylin and UOS.

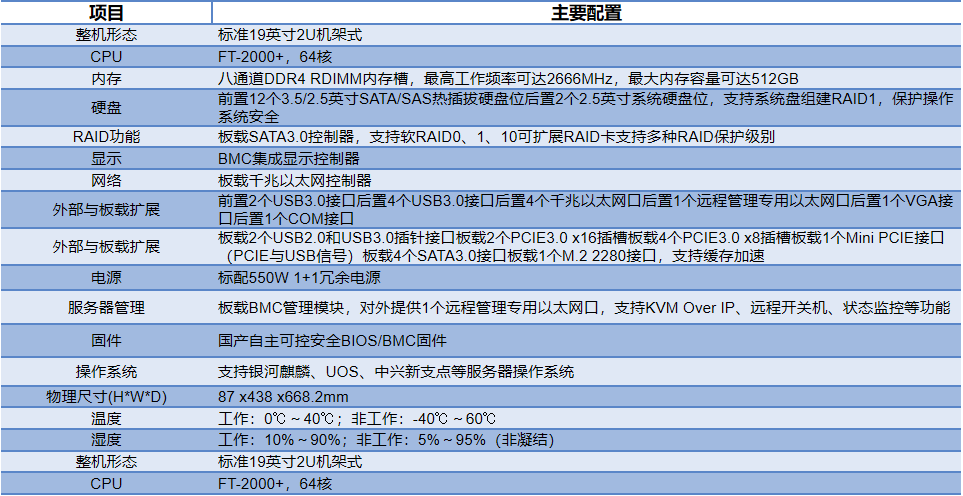

Server Specifications and Features
Form Factor：Standard 19-inch 2U Rackmount
CPU：
Model: FT-2000+
Cores: 64 cores
Memory：
Channels: Eight-channel
Type: DDR4 RDIMM
Frequency: Up to 2666MHz
Maximum Capacity: 512GB
Storage：
Front Bays: 12 hot-swappable 3.5/2.5-inch SATA/SAS drive bays
Rear Bays: 2 2.5-inch system drive bays
RAID Support: Supports RAID1 for system drives to ensure OS security
SATA Controller: Onboard SATA 3.0 controller, supports software RAID 0, 1, 10
RAID Card Expansion: Supports various RAID protection levels
Display and Networking：
BMC Integrated Display Controller
Onboard Gigabit Ethernet Controller
External and Onboard Expansion：
Front Ports: 2 USB 3.0 ports
Rear Ports:
4 USB 3.0 ports
4 Gigabit Ethernet ports
1 dedicated remote management Ethernet port
1 VGA port
1 COM port
Onboard Interfaces:
2 USB 2.0 and USB 3.0 header ports
2 PCIE 3.0 x16 slots
4 PCIE 3.0 x8 slots
1 MiniPCIE slot (PCIE and USB signals)
4 SATA 3.0 ports
1 M.2 2280 slot, supports cache acceleration
Power Supply：Standard: 550W 1+1 redundant power supply
Server Management：
Onboard BMC Management Module: Provides 1 dedicated remote management Ethernet port, supports KVM Over IP, remote power on/off, status monitoring, and more.
Firmware：Security: Proprietary secure BIOS/BMC firmware
Operating System：Supported OS: Kirin Linux, UOS, and ZTE New Start server operating systems
Physical Dimensions (HWD)：Dimensions: 87 x 438 x 668.2 mm
Environmental Requirements：
Temperature:
Operating: 0℃ to 40℃
Non-operating: -40℃ to 60℃
Humidity:
Operating: 10% to 90%
Non-operating: 5% to 95% (non-condensing)
Key Configuration (Repeated Section)：
Form Factor: Standard 19-inch 2U Rackmount
CPU: FT-2000+, 64 cores
