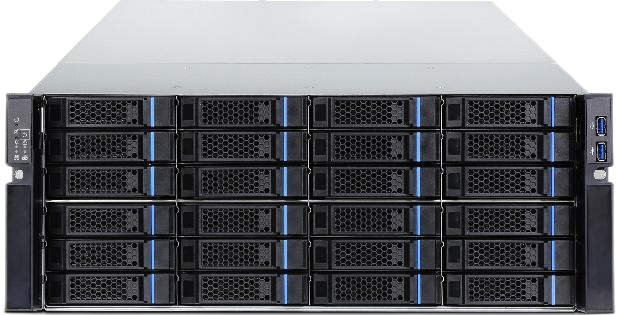

Based on the next-generation domestic Feiteng S5000C 32-core processor, this 4U high-performance storage server is designed for enterprise-level data centers. It features 24 front and 12 rear 3.5/2.5-inch SATA/SAS hot-swappable drive bays. Targeting critical applications in centralized data management, government systems, and key industry clients, it delivers robust enterprise-level computing performance and scalability. The server supports various RAID configurations and is equipped with an intelligent management system, offering comprehensive data protection features and facilitating effortless remote data management and protection.
High Performance
Based on the 32-core Tengyun S5000C high-performance general-purpose microprocessor, offering robust computing capabilities.
Supports up to 3 half-height, dual-width GPU/AI cards, enhancing computing power.
8-channel DDR5 RDIMM memory slots, with a maximum frequency of 4400MHz.
6 PCIe 5.0 expansion slots, providing higher performance and greater expandability.
Onboard 2 M.2 2280 slots, supporting cache acceleration.
Onboard dedicated Ethernet port for remote management.
Intelligent array support significantly enhances I/O performance.
High Reliability
Supports multiple RAID protection levels to improve data processing performance and ensure data security.
Fully shielded against electromagnetic radiation, interference, and static electricity.
1+1 fully redundant power supply design for increased operational security.
Low Power Consumption
Configured with high-efficiency power supplies and dynamic cooling mechanisms, significantly reducing energy costs while maintaining performance.
Intelligent cooling system adjusts fan speeds based on the temperature of key components, saving energy, reducing noise, and increasing fan reliability.
Security and Control
Independently controllable information industry system, helping to eliminate security risks in strategic fields such as e-government and national defense.
Features domestically produced, independently controllable secure BIOS/BMC.
Supports server operating systems like Galaxy Kylin and UOS.

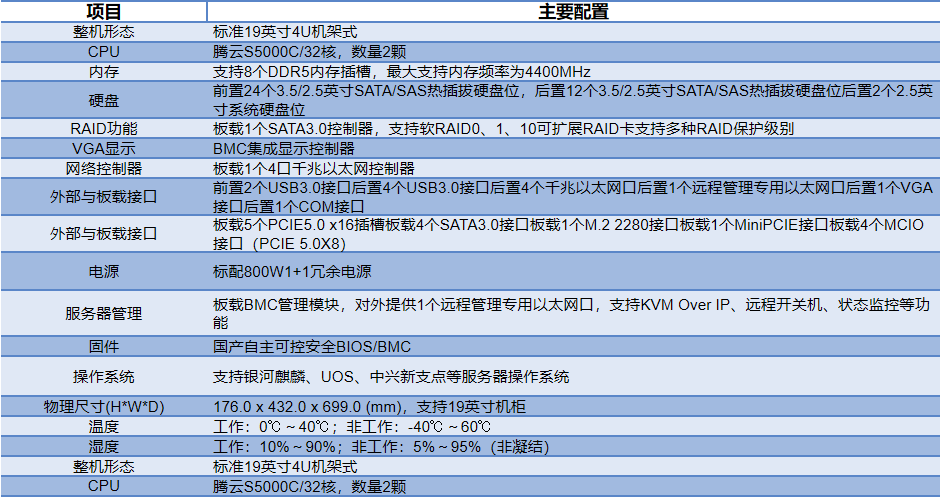

Main Specifications
Overall Form Factor Standard 19-inch 4U chassis
CPU ：Tengyun S5000C/32 cores, up to 2 processors
Memory ： Supports up to 6 DDR5 memory slots, maximum memory speed up to 4400MHz
Hard Drives Front: 24 x 3.5/2.5-inch SATA/SAS hot-swappable drive bays, Rear: 12 x 3.5/2.5-inch SATA/SAS hot-swappable drive bays,
Rear: 2 x 2.5-inch system drive bays
RAID Functionality： Onboard 1 x SATA 3.0 controller, supports RAID 0, 1, 10, expandable via RAID card to support various RAID levels
VGA Display： BMC integrated display control
Network Controller： Onboard 1 x 4-port Gigabit Ethernet controller
External I/O Ports Front: 2 x USB 3.0 ports, Rear: 4 x USB 3.0 ports, 4 x Gigabit Ethernet ports, 1 x dedicated Ethernet port for remote management, 1 x VGA port, 1 x COM port
External Expansion Slots： Onboard 5 x PCIe 5.0 x16 slots, 4 x SATA 3.0 ports, 1 x M.2 2280 port, 1 x Mini PCIe port, 4 x MCIO ports (PCIe 5.0 x8)
Power Supply ：Standard 800W + 1 redundant power supply
Server Management： Onboard BMC management module, provides 1 x dedicated remote management Ethernet port, supports KVM over IP, remote power on/off, status monitoring, etc.
Firmware ：Domestic secure BIOS/BMC
Operating System： Supports Kirin, UOS, and Zhongxing's new server operating systems
Physical Dimensions (HWD) ：176.0 x 432.0 x 699.0 mm, supports 19-inch racks
Temperature： Operating: 0°C ~ 40°C, Non-operating: -40°C ~ 60°C
Humidity Operating: 10% ~ 90%, Non-operating: 5% ~ 95% (non-condensing)
