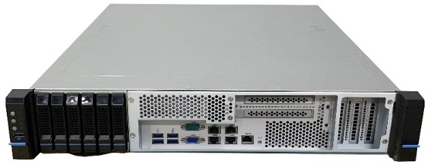

Description of OTII Server and GPU/AI Edge Computing Server
powered by two next-generation domestic Feiteng S5000C processors, each with 32 cores. With 6 front-facing hot-swappable 2.5-inch SATA/SAS drive bays, these servers are designed to address edge computing scenarios, ideal for deployment in 5G/IoT, AR/VR, and similar environments.
Key Features:
Processing Power: Utilizes dual Feiteng S5000C processors, each with 32 cores, for robust computational performance.
Storage: Provides 6 hot-swappable 2.5-inch SATA/SAS drive bays for flexible storage configurations.
Expansion Slots: Supports up to 5 PCIe 5.0 expansion slots, accommodating full-height/half-height cards for enhanced scalability.
Edge Computing Design: Tailored for edge computing scenarios, offering high density, performance, and low power consumption.
Deployment Flexibility: Suitable for various industry applications, including 5G/IoT, AR/VR, etc.
Reliability and Security: Ensures reliability and security in edge environments, capable of handling challenges posed by extreme conditions.
These servers represent a versatile solution for industry users, delivering high performance, flexibility, and reliability to meet the demands of edge computing applications.
Server Specifications:
Model: Tengyun S5000C/32-core
Rack Type: Standard 19-inch 2U
Quantity: 2 servers
Overall Configuration:
CPU: 32-core
Memory: Supports 8 DDR5 memory slots (maximum frequency: 4400MHz)
Hard Disk: 6 front-facing 2.5-inch SATA/SAS hot-swappable slots
RAID Functionality: Supports software RAID0, 1, 10; expandable RAID cards
Display Network: Integrated BMC display controller
AI/GPU Card Support: Supports up to 1 full-height double-width or 2 full-height single-width AI/GPU cards, or 5 half-height single-width cards
Expansion and Connectivity:
Front-facing Interfaces: 5 USB3.0, 4 Gigabit Ethernet, 1 dedicated Ethernet for remote management, 1 VGA, 1 COM
Onboard Expansion: 5 PCIE5.0 x16 slots, 4 SATA3.0 interfaces, 1 M.2 2280, 1 MiniPCIE, 4 MCIO interfaces (PCIE 5.0X8)
Power Supply: Standard 800W 1+1 redundant (supports 1200W/1600W/2000W)
Management and Control:
Server Management: BMC management module expansion
Remote Management: 1 dedicated Ethernet port for remote management, supporting KVM OverIP, remote power on/off, and status monitoring
Firmware and Operating System:
Firmware: Domestically controllable secure BIOS/BMC firmware
Operating System: Compatible with domestic server OS such as Galaxy Kirin and UOS
Physical Dimensions and Environmental Conditions:
Dimensions: 450mm x 437mm x 89mm
Operating Temperature: 0°C to 45°C
Non-operating Temperature: -40°C to 60°C
Operating Humidity: 10% to 90%
Non-operating Humidity: 5% to 95% (non-condensing)
