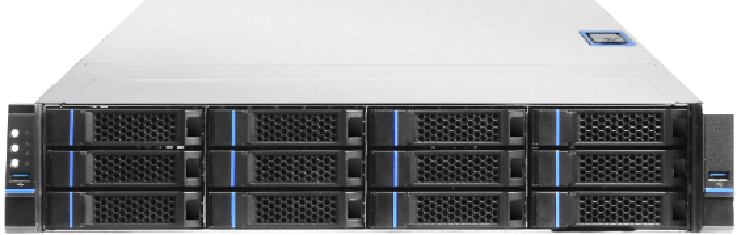

High-Performance Balanced Server Based on the Latest Generation 32-Core Dual Feiteng Processors
This server employs two of Feiteng's latest generation 32-core Tengyun S5000C processors, providing robust enterprise-level computing power and expandability.
Key features include:
Memory: Supports up to 8 DDR5 RDIMM memory modules with frequencies up to 4400MHz.
Storage: Front panel supports 12 or 24 hot-swappable 3.5/2.5 inch NVMe/SATA/SAS drive bays.
Expansion Slots: Onboard support for 6 PCIe 5.0 slots, with a maximum of 3 half-height, dual-width GPU/AI cards.
Performance and Capacity: This configuration meets both performance and capacity needs.
RAID Options: Supports various RAID configurations.
Intelligent Management System: Equipped with advanced data protection features, enabling easy remote data management and safeguarding.
Security: Ideal for critical business operations with high information security requirements.
High Performance
Based on the 32-core Tengyun S5000C high-performance general-purpose microprocessor, offering robust computing capabilities.
Supports up to 3 half-height, dual-width GPU/AI cards, enhancing computing power.
8-channel DDR5 RDIMM memory slots, with a maximum frequency of 4400MHz.
6 PCIe 5.0 expansion slots, providing higher performance and greater expandability.
Onboard 2 M.2 2280 slots, supporting cache acceleration.
Onboard dedicated Ethernet port for remote management.
Intelligent array support significantly enhances I/O performance.
High Reliability
Supports multiple RAID protection levels to improve data processing performance and ensure data security.
Fully shielded against electromagnetic radiation, interference, and static electricity.
1+1 fully redundant power supply design for increased operational security.
Low Power Consumption
Configured with high-efficiency power supplies and dynamic cooling mechanisms, significantly reducing energy costs while maintaining performance.
Intelligent cooling system adjusts fan speeds based on the temperature of key components, saving energy, reducing noise, and increasing fan reliability.
Security and Control
Independently controllable information industry system, helping to eliminate security risks in strategic fields such as e-government and national defense.
Features domestically produced, independently controllable secure BIOS/BMC.
Supports server operating systems like Galaxy Kylin and UOS.
Main Specifications
Form Factor：Standard 19-inch 2U rack-mounted
CPU：Tengyun S5000C, 32 cores, dual processors
Memory：Supports up to 8 DDR5 memory slots, with a maximum frequency of 4400MHz
Hard Drives (Front)：Front: 12 x 3.5/2.5 inch SATA/SAS hot-swappable drive bays or 24 x 2.5 inch NVMe/SATA/SAS hot-swappable drive bays
Hard Drives (Rear)：Rear: 2 x 2.5 inch hot-swappable NVMe/SATA/SAS drive bays (optional)
RAID Functionality：Supports expansion RAID cards and multiple RAID protection levels
VGA Display：BMC integrated display controller
Network Controller：Onboard 4-port 1GbE network controller
GPU/AI Cards：Supports up to 3 half-height, dual-width GPU/AI cards
External I/O Ports (Front and Rear)：Front: 2 x USB 3.0 ports, 1 x VGA port
Rear: 1 x VGA port, 1 x BMC management port, 1 x DB9 serial port, 4 x USB 3.0 ports, 4 x 1GbE network ports
Expansion Slots：
6 PCIe 5.0 x16 slots
4 SATA 3.0 ports, 2 M.2 2280 slots (PCIe 5.0 x4), supporting cache acceleration
4 MCIO slots
Power Supply：Standard 800W 1+1 redundant power supply
Server Management：
Onboard SODIMM slot for BMC management expansion module
1 dedicated management network port for external connection
Supports KVM over IP and remote management
Firmware：Domestic, independently controllable secure BIOS/BMC components
Operating Systems：Supports Galaxy Kylin, UOS, and other server operating systems
Chassis Dimensions：660mm x 438mm x 87mm (depth x width x height), fits 19-inch rack
Temperature：
Operating: 0°C to 40°C
Non-operating: -40°C to 60°C
Humidity：
Operating: 10% to 90%
Non-operating: 5% to 95% (non-condensing)
