The high-performance balanced/edge server, based on the latest generation of Feiteng's 32-core dual-processor architecture, features two of Feiteng's latest 32-core Tengyun S5000C processors. It supports up to 8 DDR5 RDIMM modules with a memory frequency of up to 4400MHz. The front panel accommodates 8 hot-swappable 3.5/2.5 inch SATA/SAS hard drive bays, delivering enterprise-grade computing power and scalability. The motherboard includes 5 PCIe 5.0 x16 slots and offers optional GPU accessories, supporting full-height, full-length, dual-width computing cards, ideal for edge computing and AI inference applications. This general-purpose configuration meets both performance and capacity needs, supporting various RAID options and equipped with an intelligent management system. It provides extensive data protection features, enabling easy remote data management and safeguarding, making it suitable for critical business operations with high information security requirements.
High Performance
Based on the 32-core Tengyun S5000C high-performance general-purpose microprocessor, offering robust computing capabilities.
Supports 8-channel DDR5 RDIMM memory slots with a maximum frequency of up to 4400MHz.
Includes 5 PCIe 5.0 x16 expansion slots, providing enhanced performance and expandability.
Equipped with an onboard dedicated Ethernet port for remote management.
Intelligent array support significantly enhances I/O performance.
High Reliability
Supports multiple RAID protection levels to improve data processing performance and ensure data security.
Designed with full shielding against electromagnetic radiation, interference, and static electricity.
Features a 1+1 fully redundant power supply design for increased operational security.
Low Power Consumption
Configured with high-efficiency power supplies and dynamic cooling mechanisms, significantly reducing energy costs while maintaining performance.
Utilizes an intelligent cooling system that adjusts fan speeds based on the temperature of key components, saving energy, reducing noise, and increasing fan reliability.
Security and Control
Independently controllable information industry system, helping to eliminate security risks in strategic fields such as e-government and national defense.
Features domestically produced, independently controllable secure BIOS/BMC.
Supports server operating systems like Galaxy Kylin and UOS.
Main Specifications

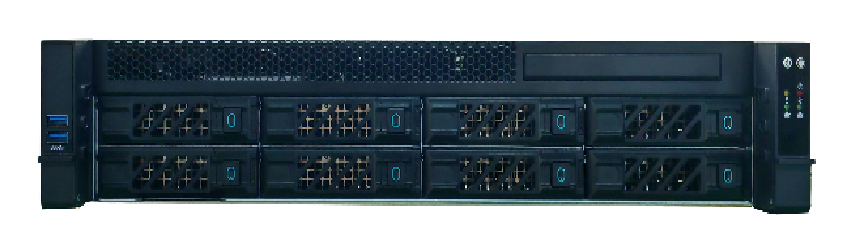

Form Factor：Standard 19-inch 2U rack-mounted
CPU：Tengyun S5000C, 32 cores, dual processors
Memory：Supports 8 DDR5 memory slots, with a maximum frequency of 4400MHz
Hard Drives (Front)：8 hot-swappable 3.5-inch SATA/SAS hard drive bays
RAID Functionality：Supports expansion RAID cards and multiple RAID protection levels
VGA Display：BMC integrated display controller
Network Controller：Onboard 4-port 1GbE network controller
GPU/AI Cards：Supports up to 1 dual-width AI/GPU card or 2 full-height single-width AI/GPU cards; alternatively, up to 5 half-height single-width cards
AI Computing Power：Up to 1280 TOPS@INT8, 320 TFLOPS@FP16
External I/O Ports (Front and Rear)：Front: 2 x USB 3.0 ports
Rear: 1 x VGA port, 1 x BMC management port, 1 x DB9 serial port, 4 x USB 3.0 ports, 4 x 1GbE network ports
Expansion Slots：5 PCIe 5.0 x16 slots (optional configuration for GPU support: 2 full-height slots + 1 half-height slot)
4 SATA 3.0 ports, 1 M.2 2280 slot, 1 MiniPCIe slot, 4 MCIO slots (PCIe 5.0 x8)
Power Supply：Standard 800W 1+1 redundant power supply
Server Management：Onboard SODIMM slot for BMC management expansion module
1 dedicated management network port for external connection
Supports KVM over IP and remote management
Firmware：Domestic, independently controllable secure BIOS/BMC components
Operating Systems：Supports Galaxy Kylin, UOS, and other server operating systems
Chassis Dimensions：660mm x 435mm x 88mm (depth x width x height), fits 19-inch rack
Temperature：Operating: 0°C to 40°C Non-operating: -40°C to 60°C
Humidity：Operating: 10% to 90% Non-operating: 5% to 95% (non-condensing)
