Board mount Intel 8G WSK-U series or 10G CML-U series
Dual Intel Gigabit High Speed Stable
Rich industrial I/O: 6COM, 9USB, 8bit GPIO, mSATA, Mini-PCIe,LVDS/EDP,SM-Bus,LPC,10-24V wide voltage supply
One DDR4 SODIMM memory slot supports up to 16GB
High Tg wide temperature PCB material to ensure wide temperature stability
Industrial-grade port protection blocks static electricity and surges, effectively protecting the core of the system
Industrial interface chip to ensure stable and reliable data
规格 下载产品文件
Product Code | AIoT4-CMU |
Product Type | Embedded industrial motherboard |
Processor | Intel 8 WSK-U 4205 U, i5 - 8265 U, i7 - 8565 U, and Intel 10 CML-U 5205 U, i5 - 10210 U, and i7 - 10510 U |
Chipset | Intel WSK-U SOC or CML-U SOC |
Memory | Supports 1 DDR4 SO-DIMM memory slot, MAX 16GB |
Display controller | Intel Integrated UHD Graphics |
Display interface | Triple display interface HDMI+LVDS or eDP(jumper selection), VGA(pin optional), support independent triple display HDMI 1.4 max resolution up to 4096*2160@24Hz LVDS, Dual Channel 24bit, max resolution up to 1920*1200@60 eDP, max resolution up to 4096*2160@60Hz |
Save storage | Support 1 SATA3.0+PWR 4pin 2.54mm , support 1 mSATA |
Audio frequency | F_AUDIO1, 2x5pin, 2.0mm, 1 x SPK_OUT, 1x4pin, 2.0mm |
Network | 2 x Intel i211AT RJ45 Gigabit network interface |
USB | 4 board edge USB3.0, 2 board USB2.0 pins, 3 USB2.0 integrated in MIX-IO |
SM bus/I²C interface | 1 SM bus integrated in MIX-IO |
Gorge line | COM1, COM2 support RS232/422/485(BIOS settings) COM3, COM4 support TTL signal integration in MIX-IO bus COM5 support RS232/TTL， 2x5pin， 90°， 2.0mm |
PS2 Keyboard/LPT Interface | PS2 keyboard and mouse interface integrated in MIX-IO |
Digital I/O | 1 x 8-bit GPIO Wafer interface, providing power and ground, +5V level output |
LPC Extension Interface | MIX-IO Integrated LPC Local Bus Expandable 4 Serial Port Module |
TPM interface | Onboard encryption chip SLB9670, support TPM2.0 |
Power | Support 10~24V DC wide voltage input, 2 pin , VH3.96 interface (with DC-Jack adapter cable) Provide a 4pin 2.54mm +12V fan interface |
Expansion bus | 1 x Mini-PCIe (with SIM card holder to support 4G module) 1 custom MIX-IO bus integrated GPIO/2xUart/3xUSB2.0/PS2/PCIex1/SW/LPC/Smbus |
Atmospheric conditions of working environment | Temperature range -10℃~60℃ (extendable -40~70℃), relative humidity 10%~85%, atmospheric pressure 85~105kPa |
Storage Ambient Atmospheric Conditions | Temperature range-40 ℃~85℃;Relative humidity 5%~95%(40℃), atmospheric pressure 85~105kPa |
Watch Dog | 255 levels of programmable sec/min with timeout interrupt or system reset |
BIOS | AMI UEFI BIOS |
Operating system | Windows 10, Linux (Ubuntu 18.04 and Fedora Core 28) |
PCB color matching requirements | PCB is painted with industrial green |
PCB (LxWxH) | 168x 120 mm |

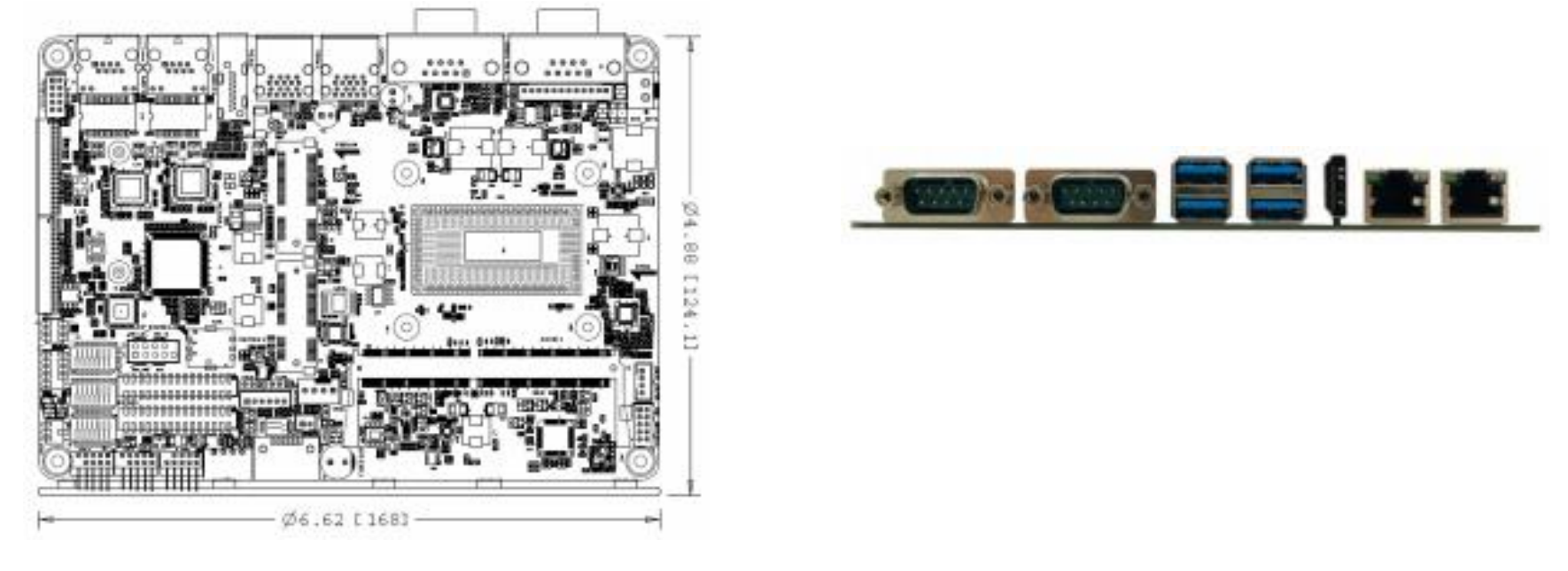

Product dimensions and interface layout：
Ordering information：
Motherboard model | Chipset | Memory | Display | Storage | USB3 | USB2 | COM | LAN | PCIe |
AIoT4-CMU05 | 5205U | 1SODIMM | Three Display | 1SATA 1mSATA | 4 | 5 | 6 | 2 | 2PCI e |
AIoT4-CMUi5 | i5-10210U | 1SODIMM | Three Display | 1SATA 1mSATA | 4 | 5 | 6 | 2 | 2PCI e |
AIoT4-CMUi7 | i7-10510U | 1SODIMM | Three Display | 1SATA 1mSATA | 4 | 5 | 6 | 2 | 2PCI e |
List of accessories：
Accessory Description | Specification | Number |
Power adapter | 2 pin, VH3.96 interface to DC-Jack with screw adapter | 1 |
SATA hard disk adapter | SATA-7P(female)/with metal spring/L=300 | 0 |
